I bought magnefine filters, however couldn't find any information how to install it on TLS 2007-2008.
I installed one in PS system. It was easy peasy. I attach photos in case anybody would look for such information.



I just needed to trim # 50 from diagram




Another thing is AT system. Unfortunately I can't find any information regarding the fluid flow direction.

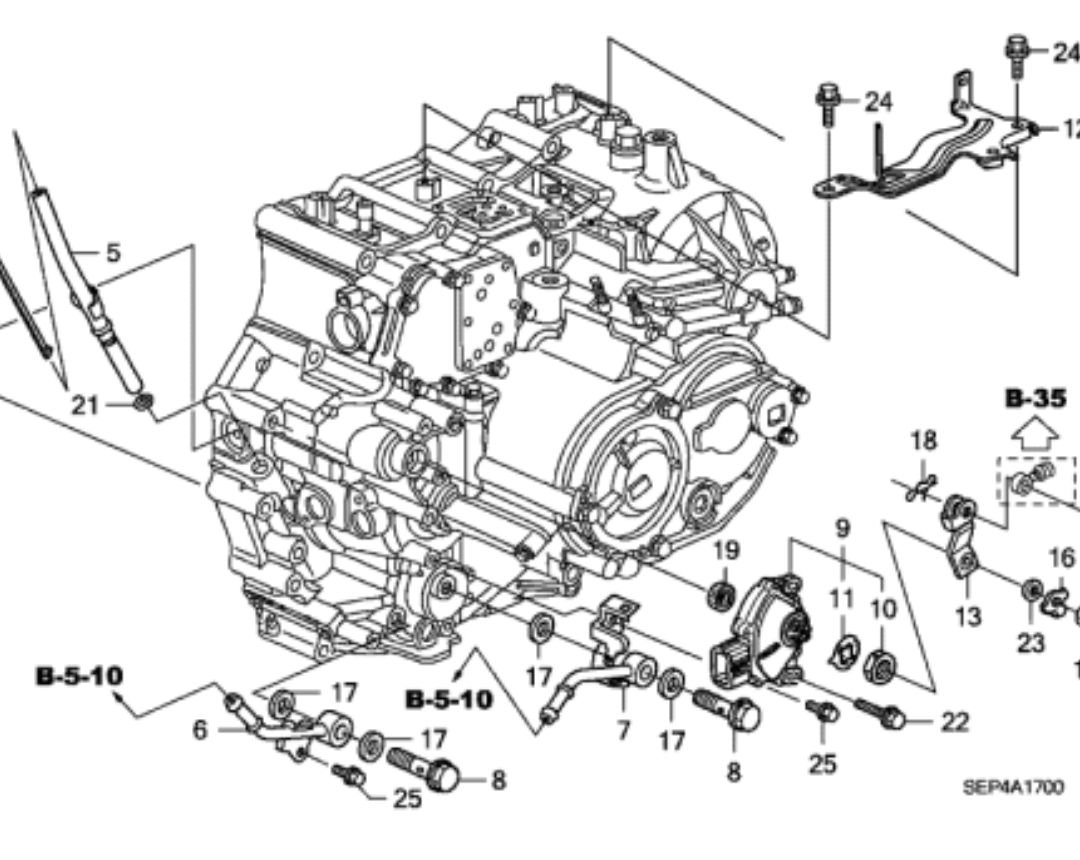

Does anybody know the direction of ATF going through #6 and #7 on the diagram?

Could check it by tracking the heat, however you can't get there with battery installed.



yes fluid comes in and out of 6/7 via the banjo bolts (#8). I believe they lead to the atf cooler/warmer



So there is no one direction? It changes?
My question is:
is the direction:
6 ---> cooler ---> 7
or
7 --> cooler --> 6
?



looks like linked photos are broken in this thread, but does mention flow direction:

I would say it's safe to assume this is referring to the same parts diagram.



I believe the fluid comes out of the the trans from #7 and then enters the trans fluid pan via #6



No, #7 is the inlet.

Flow path is from #6, the outlet from the regulator valve body and cooler check valve to the cooler. Then from the cooler to the internal filter (round part of the case where #7 attaches) and back to the pickup/suction side of the pump.



Reattach the photos.
PS system.




AT system.



Sorry, wrong AT system diagram.
