Going to attempt the Navi install.
#1
Three Wheelin'
Thread Starter
Going to attempt the Navi install.
I missed the UPS man the past couple days, but I finally got it. I really don't know anything about car stereos, but I researched everything and it looks pretty straight forward. Everything except for the custom double din mounting kit I need to make.
It's the Pioneer AVIC F90BT
I searched the internet and got the impression it would just slide right in using the original mounting hardware. The only optional piece I would need is the trim kit to make it look more flush. After pulling out the radio that was already in the car, I now see that this just isn't going to work. A quick search of the forums shows I need to purchase a double din kit and then modify it for the navi unit.
Am I missing something here? I don't see where the mounting kit connects to the audio console. All I see are a couple of screws at the lower back.
Tonight I plan on soldering the wires to the adapter harness. I've never done this before, but it doesn't look too hard. And also a little more research on how to get this bracket to work.
It's the Pioneer AVIC F90BT
I searched the internet and got the impression it would just slide right in using the original mounting hardware. The only optional piece I would need is the trim kit to make it look more flush. After pulling out the radio that was already in the car, I now see that this just isn't going to work. A quick search of the forums shows I need to purchase a double din kit and then modify it for the navi unit.
Am I missing something here? I don't see where the mounting kit connects to the audio console. All I see are a couple of screws at the lower back.
Tonight I plan on soldering the wires to the adapter harness. I've never done this before, but it doesn't look too hard. And also a little more research on how to get this bracket to work.
#3
Three Wheelin'
Thread Starter
I guess I'll just buy a Metra or Scosche kit and see what I need to do. Do you know if I need one of those aluminum sleeves that covers the navi unit?
#5
'99 2.3 CL
actually, soldering is the most reliable way to connect the plug-in harness to the navi... just as long as you aren't cutting the car's harness up. I would recommend buying some shrink tube and putting an inch or so of sleeve on each connection then wrapping with looming or 3M electrical tape. The setup would look a lot like this:
with the final product resembling this:
now, onto the mounting. The CL uses a double-din style opening from the factory, so I'm not understanding why that radio shouldn't fit right in. In regards to securing the radio in that space, I would see if I could modify the factory radio bracket to accomodate the navi unit. It looks pretty beefy, but definitely needs some support. With the factory radios, the trim does act as some support for the front of the factory unit. You should do a test fit and see if it will fit in that space and allow you to reinstall the black trim.
and btw: Acura used double-din radios in the 90's RL, TL and in the Accord in markets other than the US. They are mounted in the same way as the factory radio in the CL with the exception of the part of the metal mount that juts out to accomodate the Tape or ID Cellular phone.
with the final product resembling this:
now, onto the mounting. The CL uses a double-din style opening from the factory, so I'm not understanding why that radio shouldn't fit right in. In regards to securing the radio in that space, I would see if I could modify the factory radio bracket to accomodate the navi unit. It looks pretty beefy, but definitely needs some support. With the factory radios, the trim does act as some support for the front of the factory unit. You should do a test fit and see if it will fit in that space and allow you to reinstall the black trim.
and btw: Acura used double-din radios in the 90's RL, TL and in the Accord in markets other than the US. They are mounted in the same way as the factory radio in the CL with the exception of the part of the metal mount that juts out to accomodate the Tape or ID Cellular phone.
Last edited by iansanderson; 01-08-2009 at 10:01 PM.
#6
where is....
#7
Rockin the D2! Purple Pwr
iTrader: (6)
actually, soldering is the most reliable way to connect the plug-in harness to the navi... just as long as you aren't cutting the car's harness up. I would recommend buying some shrink tube and putting an inch or so of sleeve on each connection then wrapping with looming or 3M electrical tape. The setup would look a lot like this:
with the final product resembling this:
now, onto the mounting. The CL uses a double-din style opening from the factory, so I'm not understanding why that radio shouldn't fit right in. In regards to securing the radio in that space, I would see if I could modify the factory radio bracket to accomodate the navi unit. It looks pretty beefy, but definitely needs some support. With the factory radios, the trim does act as some support for the front of the factory unit. You should do a test fit and see if it will fit in that space and allow you to reinstall the black trim.
and btw: Acura used double-din radios in the 90's RL, TL and in the Accord in markets other than the US. They are mounted in the same way as the factory radio in the CL with the exception of the part of the metal mount that juts out to accomodate the Tape or ID Cellular phone.
with the final product resembling this:
now, onto the mounting. The CL uses a double-din style opening from the factory, so I'm not understanding why that radio shouldn't fit right in. In regards to securing the radio in that space, I would see if I could modify the factory radio bracket to accomodate the navi unit. It looks pretty beefy, but definitely needs some support. With the factory radios, the trim does act as some support for the front of the factory unit. You should do a test fit and see if it will fit in that space and allow you to reinstall the black trim.
and btw: Acura used double-din radios in the 90's RL, TL and in the Accord in markets other than the US. They are mounted in the same way as the factory radio in the CL with the exception of the part of the metal mount that juts out to accomodate the Tape or ID Cellular phone.
Trending Topics
#9
where is....
you dont have to cut it short, just cut the radio harness.
i've done double din installs before, specifically avic-d3. most of the wiring is straight forward. the only problem i had was the dvd bypass. but once you get a double din dash kit, i had to trim and shave off some corners to get it to fit properly.
i've done double din installs before, specifically avic-d3. most of the wiring is straight forward. the only problem i had was the dvd bypass. but once you get a double din dash kit, i had to trim and shave off some corners to get it to fit properly.
Last edited by AznX TL; 01-08-2009 at 10:08 PM.
#10
'99 2.3 CL
good point, but there is A LOT of room to have some extra wires tucked in that space in case you want to re-install the radio.
#11
Three Wheelin'
Thread Starter
It has music. It plays CD's, DVD's, MP3's from SD card, has a really nice iPod interface and it's possible to hook up an external hard drive. It also accepts Sirius, XM and HD radio as well as regular radio. It's a pretty neat device and works really good ever since the firmware 2.0 update.
#14
where is....
#17
where is....
#18
Three Wheelin'
Thread Starter
actually, soldering is the most reliable way to connect the plug-in harness to the navi... just as long as you aren't cutting the car's harness up. I would recommend buying some shrink tube and putting an inch or so of sleeve on each connection then wrapping with looming or 3M electrical tape. The setup would look a lot like this:
[IMG][/IMG]
with the final product resembling this:
[IMG][/IMG]
now, onto the mounting. The CL uses a double-din style opening from the factory, so I'm not understanding why that radio shouldn't fit right in. In regards to securing the radio in that space, I would see if I could modify the factory radio bracket to accomodate the navi unit. It looks pretty beefy, but definitely needs some support. With the factory radios, the trim does act as some support for the front of the factory unit. You should do a test fit and see if it will fit in that space and allow you to reinstall the black trim.
[IMG][/IMG]
with the final product resembling this:
[IMG][/IMG]
now, onto the mounting. The CL uses a double-din style opening from the factory, so I'm not understanding why that radio shouldn't fit right in. In regards to securing the radio in that space, I would see if I could modify the factory radio bracket to accomodate the navi unit. It looks pretty beefy, but definitely needs some support. With the factory radios, the trim does act as some support for the front of the factory unit. You should do a test fit and see if it will fit in that space and allow you to reinstall the black trim.
As for mounting the radio, I know it will fit in the opening. I was just concerned about how I should go about mounting it since there are no off the shelf mounting kits available for our CL's. I searched the forums and couldn't find any pictures of anyone else's set-up. It looks like I'll just buy a double din kit and try to trim it to fit.
#19
where is....
use something like this
http://cgi.ebay.com/Honda-Accord-199...3%3A1|294%3A50
you can see the little center piece that you need to trim. you also need trim the corners a little bit.
http://cgi.ebay.com/Honda-Accord-199...3%3A1|294%3A50
you can see the little center piece that you need to trim. you also need trim the corners a little bit.
#20
N00berator
It has music. It plays CD's, DVD's, MP3's from SD card, has a really nice iPod interface and it's possible to hook up an external hard drive. It also accepts Sirius, XM and HD radio as well as regular radio. It's a pretty neat device and works really good ever since the firmware 2.0 update.
niceee, im jealous, good pick up
#21
Three Wheelin'
Thread Starter
"power supply" harness
"AV" harness - which contains the inputs and outputs for extra screens/backup camera etc... It also contains the mute wire that needs moved in order to complete the bypass
GPS antenna
External Mic - If you want hands free
And finally, the USB cable that's hardwired into the unit. This is unique to the F90BT. The F700 and F900 you need to purchase it separately.
It's 14 Watt RMS x 4 Channel and yes the amplifier is built in.
#22
Three Wheelin'
Thread Starter
use something like this
http://cgi.ebay.com/Honda-Accord-199...3%3A1|294%3A50
you can see the little center piece that you need to trim. you also need trim the corners a little bit.
http://cgi.ebay.com/Honda-Accord-199...3%3A1|294%3A50
you can see the little center piece that you need to trim. you also need trim the corners a little bit.
#23
Senior Moderator
Regional Coordinator
(Mid-Atlantic)
Regional Coordinator
(Mid-Atlantic)
iTrader: (6)
The double din kit mounts into your 97 outer black trim piece
#24
CL in lawnmower status
It has music. It plays CD's, DVD's, MP3's from SD card, has a really nice iPod interface and it's possible to hook up an external hard drive. It also accepts Sirius, XM and HD radio as well as regular radio. It's a pretty neat device and works really good ever since the firmware 2.0 update.
#25
Three Wheelin'
Thread Starter
#26
Three Wheelin'
Thread Starter
^be sure that you don't count on that fact, cuz on my JVC deck i think it only supports the format for drives < 32GB, although i've seen some ppl use bigger ones online, my HP never worked connected to my deck. yours may work tho, i really don't know, just wanted to warn you.
#27
CL in lawnmower status
^ you could always get some flash drives when they're cheap at best buy or whatever, just to store music or videos i think they do their job quite well.(i use some 8GB ones, but the 16GB ones are getting pretty cheap now too) And for the harddrive you can buy the small HP drives as they get the power from the usb cable aswell as being able to transfer info at the same time, i bought one and my deck had the HD running it just didn't recognize any of the files cuz of the formatting
#28
Racer
Join Date: Feb 2007
Location: Montreal. Quebec. Canada
Age: 35
Posts: 491
Likes: 0
Received 4 Likes
on
4 Posts
It has music. It plays CD's, DVD's, MP3's from SD card, has a really nice iPod interface and it's possible to hook up an external hard drive. It also accepts Sirius, XM and HD radio as well as regular radio. It's a pretty neat device and works really good ever since the firmware 2.0 update.
#29
where is....
most slim external HD don't require another power source, and run off the usb for power.
#30
Senior Moderator
Regional Coordinator
(Mid-Atlantic)
Regional Coordinator
(Mid-Atlantic)
iTrader: (6)
#32
Senior Moderator
Regional Coordinator
(Mid-Atlantic)
Regional Coordinator
(Mid-Atlantic)
iTrader: (6)
#33
CL in lawnmower status
i even checked the specs for power of the harddrive and my deck, and they were compatible, both were 5V
Last edited by mitch14; 01-09-2009 at 11:38 AM.
#34
Three Wheelin'
Thread Starter

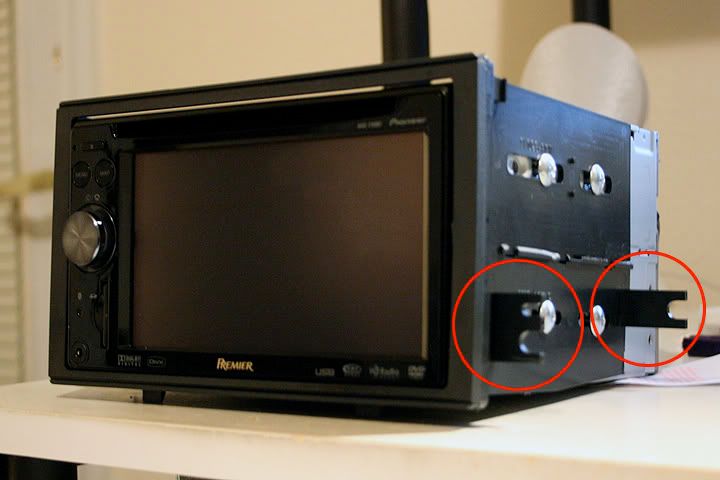

I'll check klepto's thread, but in the mean time, does anyone know if I am to remove these two tabs from the mounting kit? The directions don't give much info. It won't fit in the dash the way it is and it says nothing about removing them.
Thanks for the help so far.
Thanks for the help so far.
#35
Senior Moderator
Regional Coordinator
(Mid-Atlantic)
Regional Coordinator
(Mid-Atlantic)
iTrader: (6)
Yup, snap em off
#36
Three Wheelin'
Thread Starter
Thanks, well I got that done and ultimately turned the mounting kit into a trim kit. It's a pretty tight fit and there's really no custom work needed. All I have to do now is run the wires for the mic and gps antenna.
#37
No more 4x4
Join Date: Jun 2007
Location: Nashville, TN
Age: 38
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
sweet looks good. i wanna do that too, have been since she got the damn car lol. my silverado has a din and a half =/ one day ill put a navi unit in it with the avalanche dash stuff. till then i can only hope. theyre too pricey imo.
#38
Three Wheelin'
Thread Starter
^^It's a really cool device. Look into the F700, it can be picked up on Amazon for about $450 from a "premier" dealer, which won't void the warranty.
I got it installed tonight! I was a little worried about the bypass since you have to tap into a couple different wires and also move one of the wires in the harness. Everything works great! It doesn't quite fit as nicely as I would like, so I need to trim the mounting kit a little more. Other than that, I'm pretty satisfied with my first Navi install.
I stuck the mic next to the steering wheel and ran the iPod cable through the console and out through arm rest. The GPS antenna I stuck under the dash on top of the steering column (right behind the firewall). The only thing I didn't connect was the VSS wire, but it still locates me dead on.
I'll post some pictures tomorrow when there's more light. Thanks again for all the help.
I got it installed tonight! I was a little worried about the bypass since you have to tap into a couple different wires and also move one of the wires in the harness. Everything works great! It doesn't quite fit as nicely as I would like, so I need to trim the mounting kit a little more. Other than that, I'm pretty satisfied with my first Navi install.
I stuck the mic next to the steering wheel and ran the iPod cable through the console and out through arm rest. The GPS antenna I stuck under the dash on top of the steering column (right behind the firewall). The only thing I didn't connect was the VSS wire, but it still locates me dead on.
I'll post some pictures tomorrow when there's more light. Thanks again for all the help.
#39
where is....
yeah you don't really need to connect the VSS wire, but the D3 had a cool feature where it shows the speedometer and tach on the screen. not really useful, but cool
