I have an 04 TL w/ nav. I upgraded the nav unit with one from an 08. I also purchased an oem camera from an 08. I bought the sub camera harness 32109-SEP-A00 that connects to the camera, but the other end is female and does not fit into the back of the nav unit. Has anyone done this upgrade or does anyone with a stock 07-08 with nav know which other harness I need to purchase? Thanks, Chris
bump I am also interested in this, as far as I know u need to get a 7 pin green flat connector that plugs in behind the nav unit. if anyone has access to the diagrams it would be a huge help, need to figure out how to go from the 6 pin white female connector to the 7 pin green connector...
Since I was looking at this now because my NAVTOOL is acting up after 10 years! Whats wrong with these people? =P I figure I might as well post the answer.

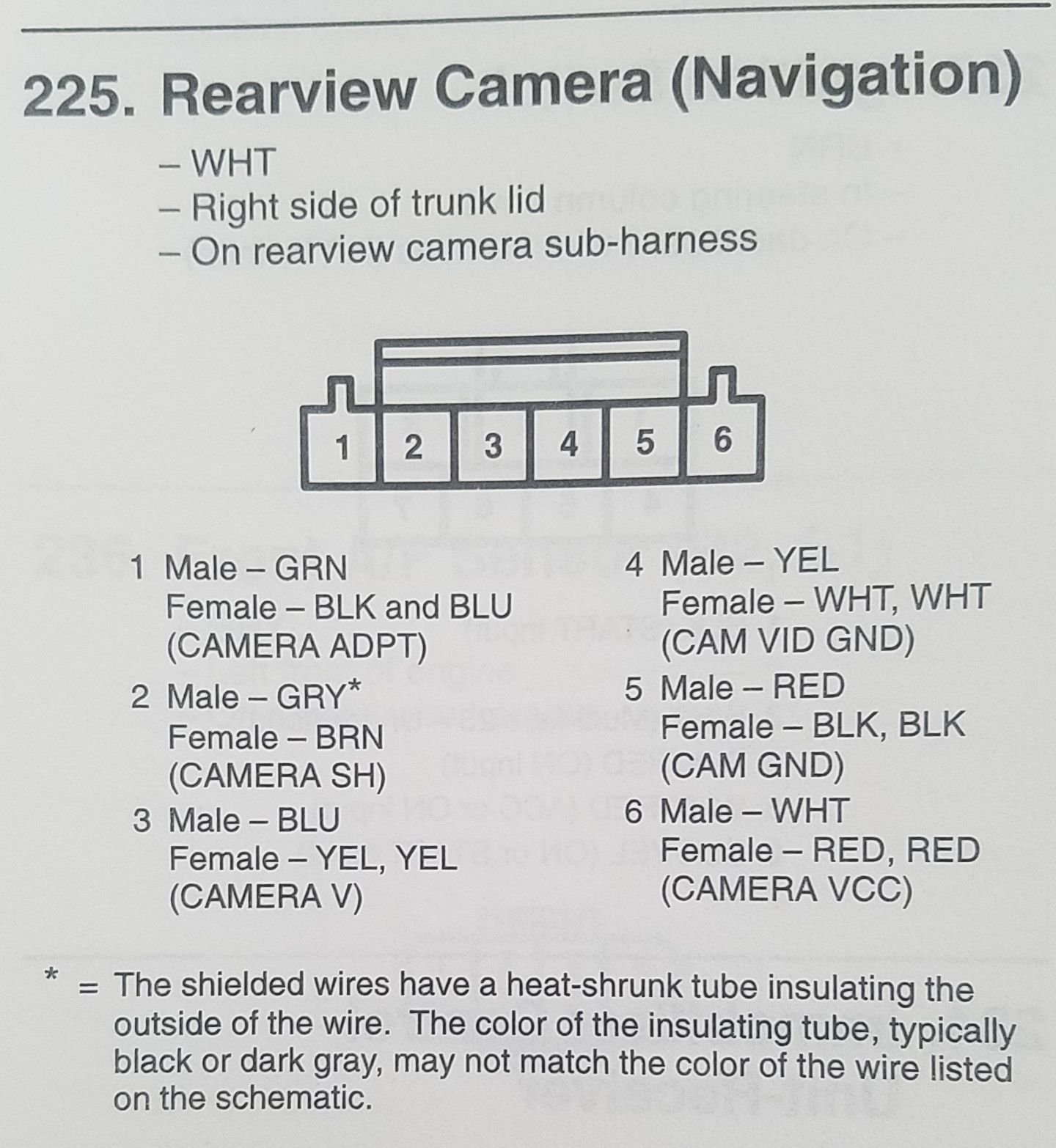

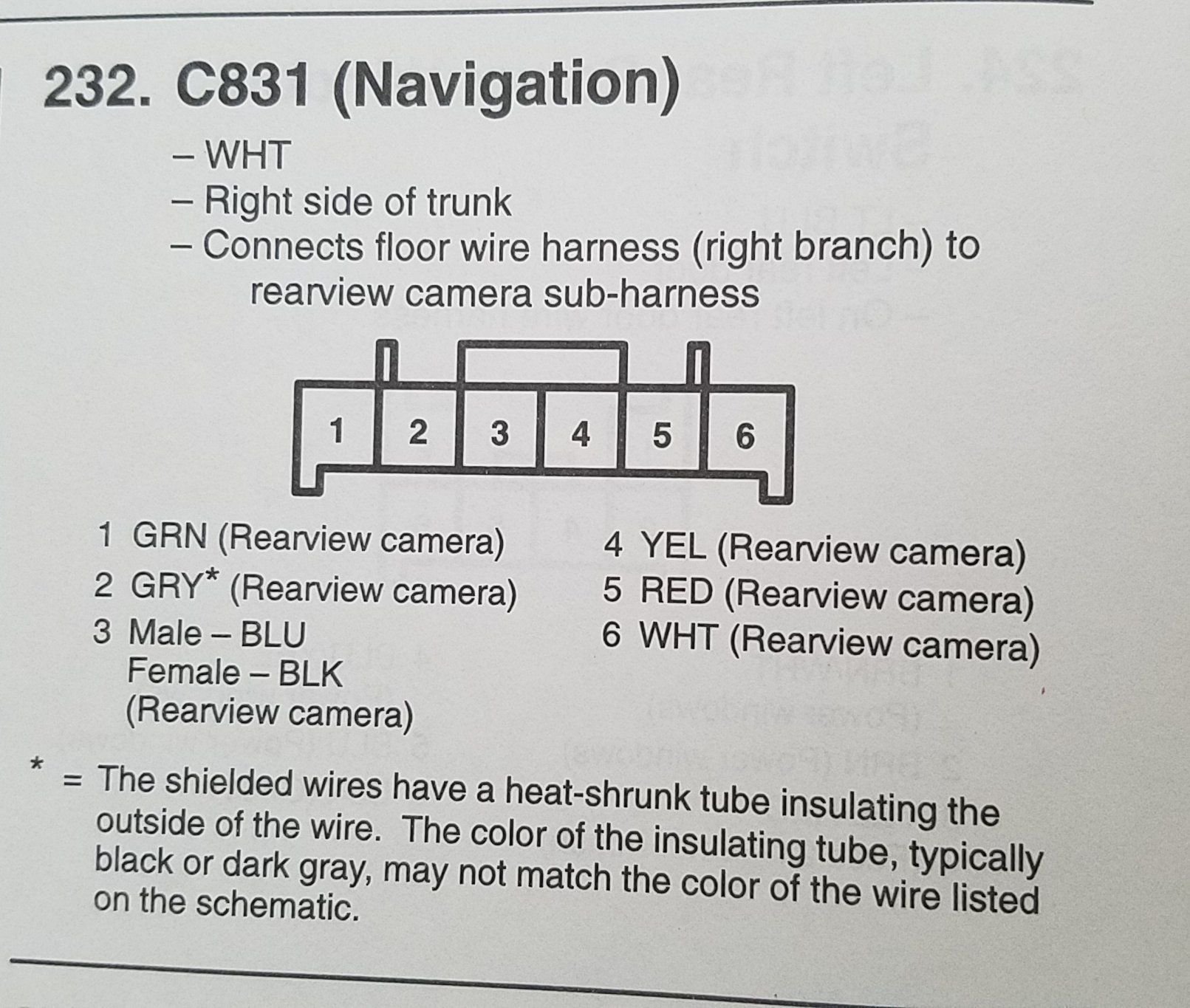

The Helm book says the connector that plugs into the DVD player is called "On Floor Wire Harness"
The OP says that camera harness #22 in the link below is not the entire thing. https://www.acurapartswarehouse.com/...ss.html?pnc=22
The only other harness on that side of the car is called No.: 6 - Wire Harness, Floor
Its only $951.68
I just got mine working... I have A NAVtool that is on the blink. So I just removed it and installed this OEM camera. Navtool said they may not have a harness anymore for it. Unfortunately the OEM camera is basically BLACK and WHITE. It's not as pretty as my other camera with Color. Oh well..
But I found this.. And ordered one in case I ever want to unplug quickly. https://www.ebay.com/itm/33388726216...4AAOSwlApbrqlN
As it is now, I just made a cable out of cat5..
Pin1 on the navi unit is on the left if you are looking at the back of the navi unit.

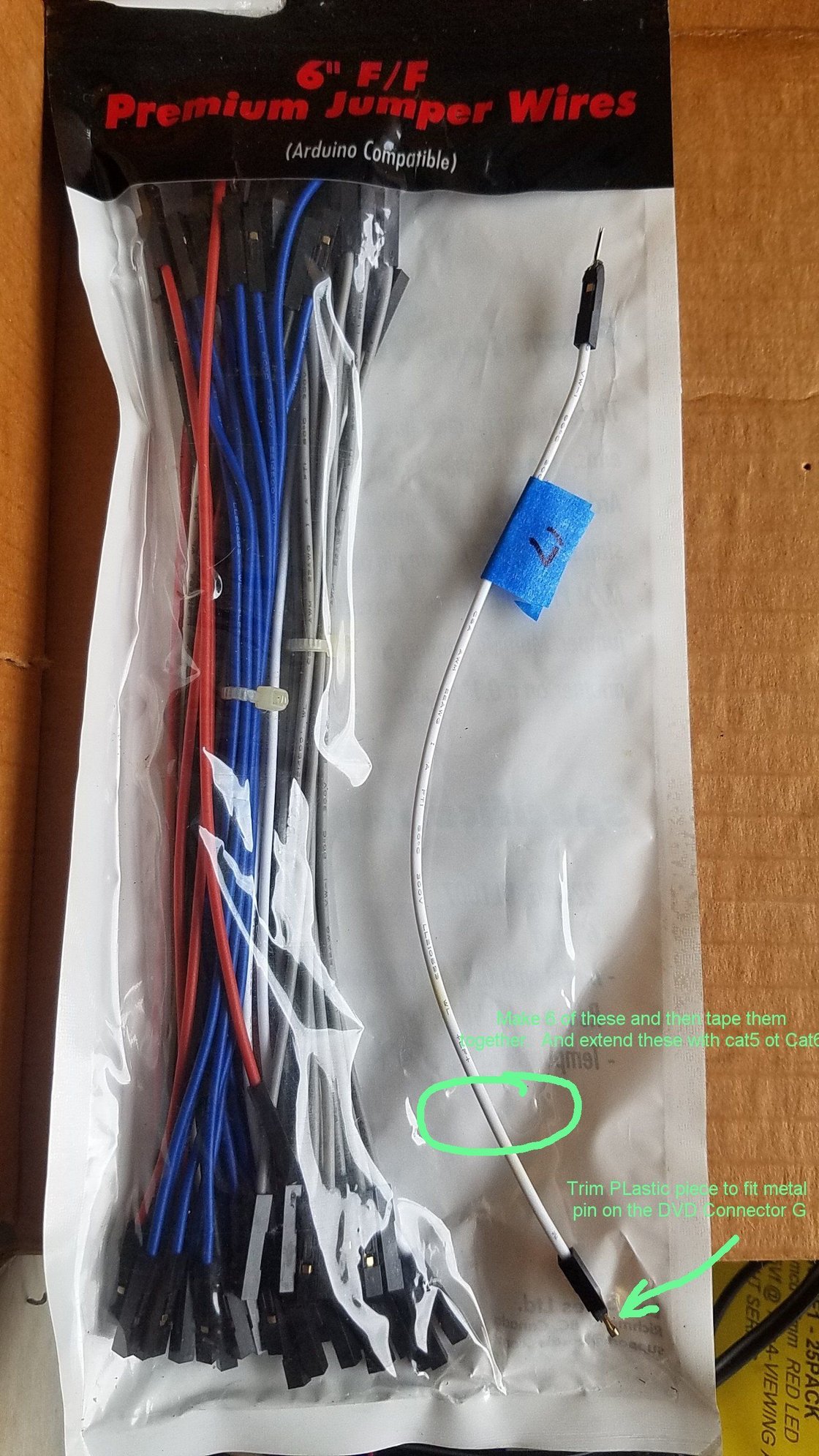

In the picture below stripped off the insulation off every other male plug so they would fit into the camera white female recepticle.
Btw, Forget about picture #189 above. You dont need that. You need to make you own cable that is a direct connection.
And you DO NOT need to install a cable or swtich that is connected to your reverse back up liight. At least I did not need it for my 2005.
Its like Acura was planning in advance but the navi unit in my 05 didnt support a backup camera.. but the wire and switching was already there!

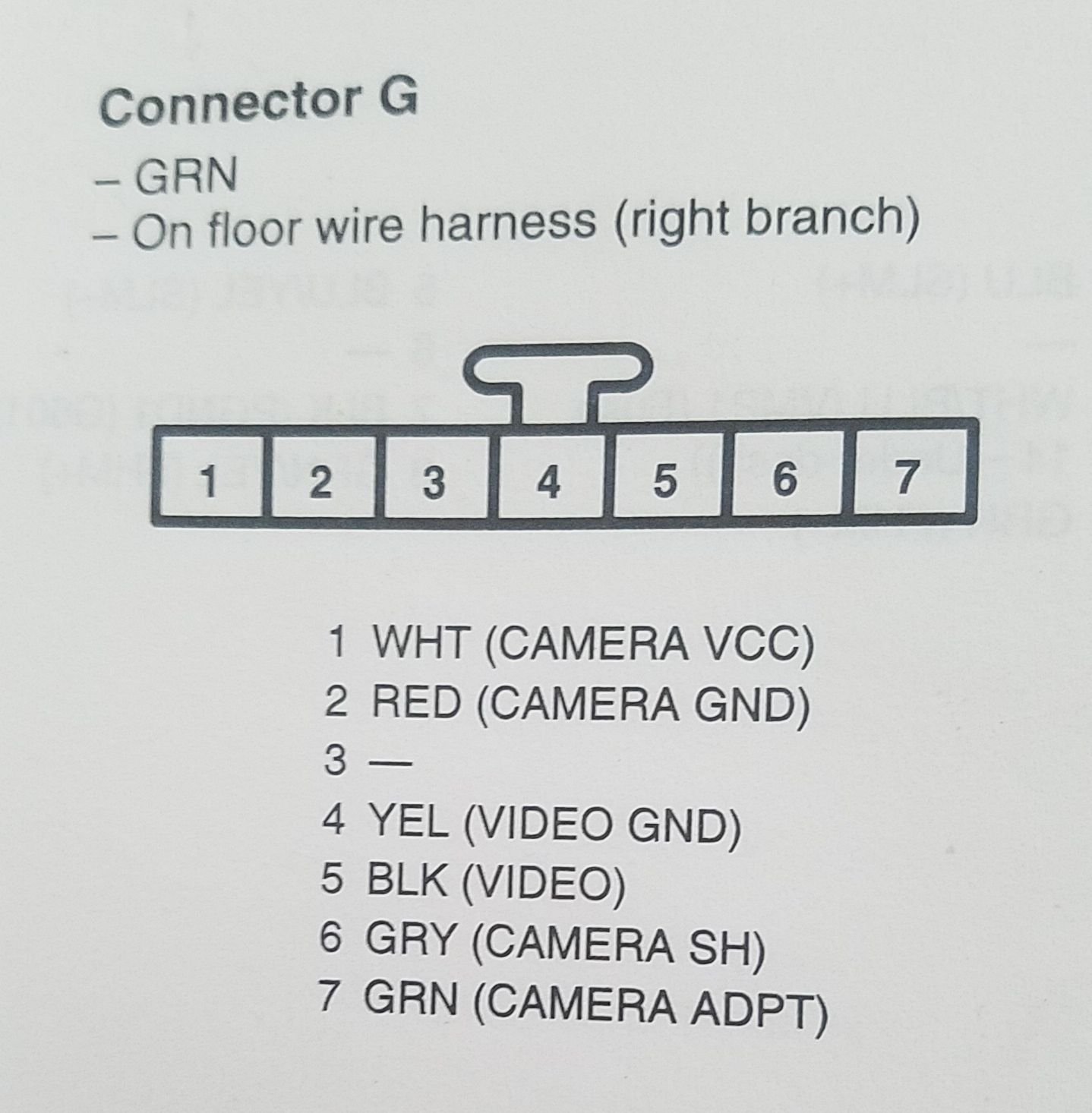

So All you need to do is wire up the camera to port G on the nav unit.
