Wiring Diagrams Needed
#1
Senior Moderator
Thread Starter
Wiring Diagrams Needed
Several of us are looking to install a Navi Conversion and are trying to wire it right behind the Navigation but we could really use the wiring diagram if anyone can provide it.. We would all really appreciate it..
-----------------------------------------------------------------------------------------------------
Thanks Shawn
These are HUGE, so I’ll just provide web links….
Let me know if you need anything else.
Shawn S

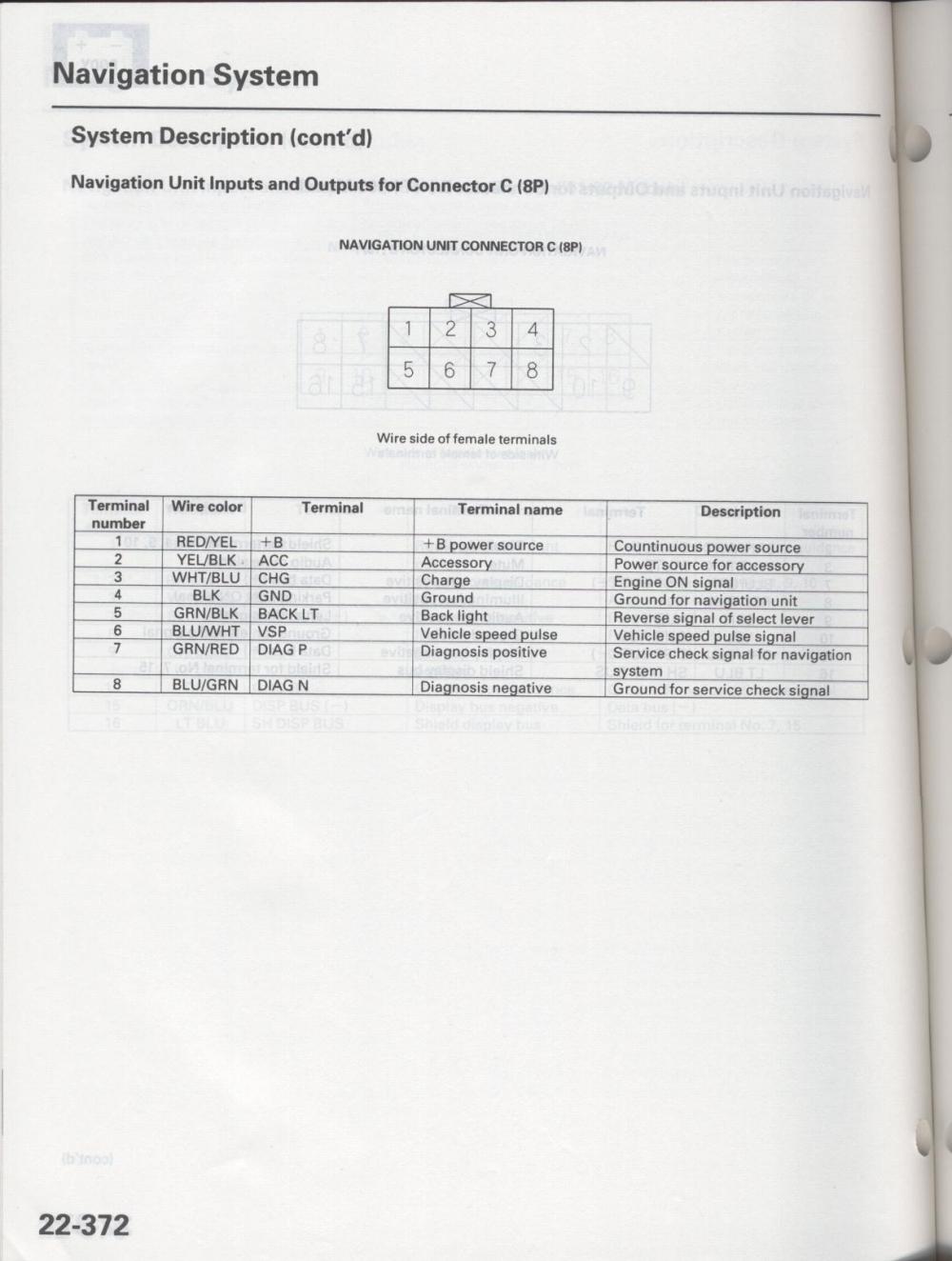

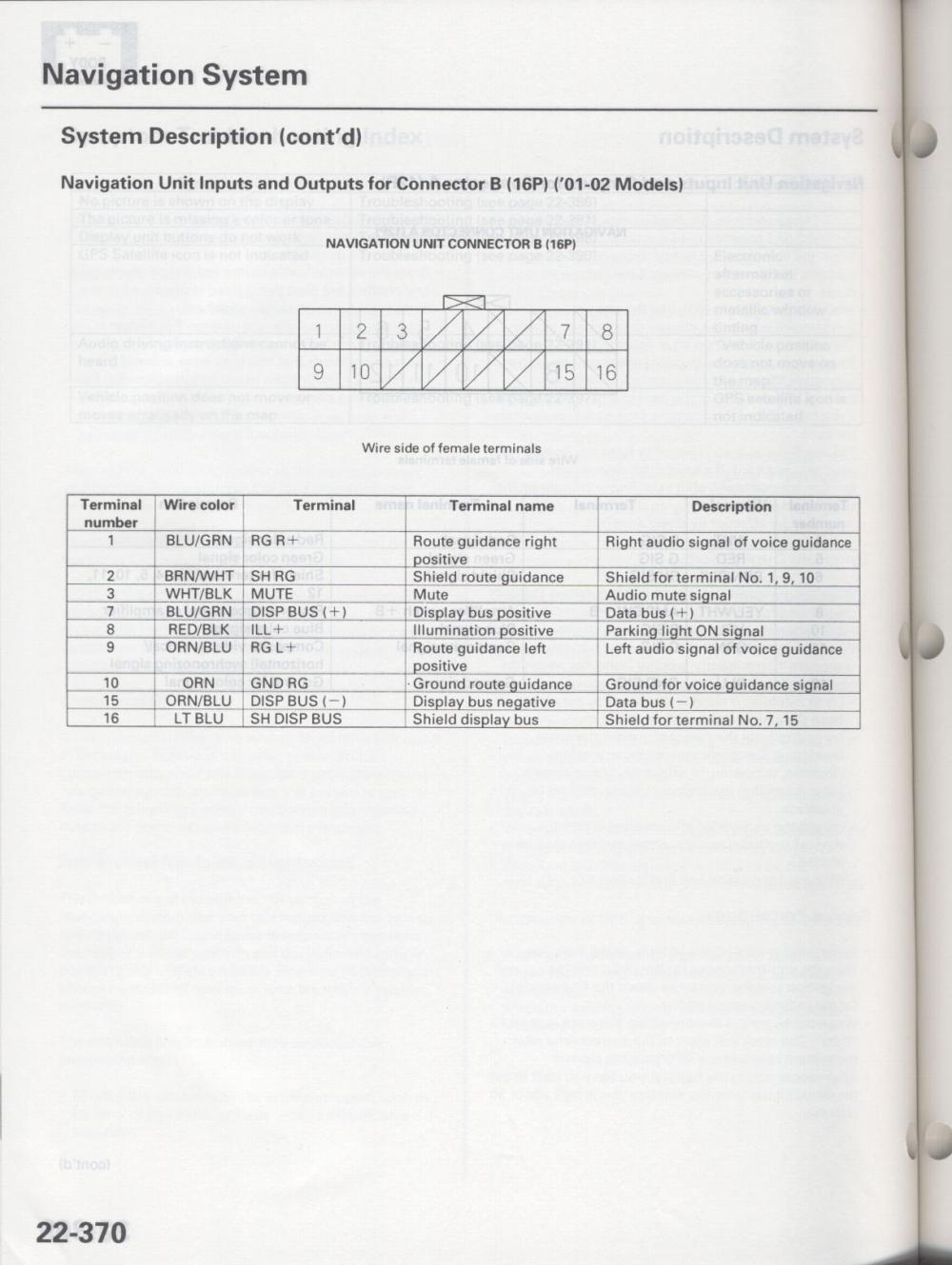

http://photos.imageevent.com/shawnse...ture%20090.jpg
http://photos.imageevent.com/shawnse...ture%20091.jpg
http://photos.imageevent.com/shawnse...ture%20092.jpg
http://photos.imageevent.com/shawnse...ture%20093.jpg
http://photos.imageevent.com/shawnse...ture%20094.jpg
http://photos.imageevent.com/shawnse...ture%20095.jpg

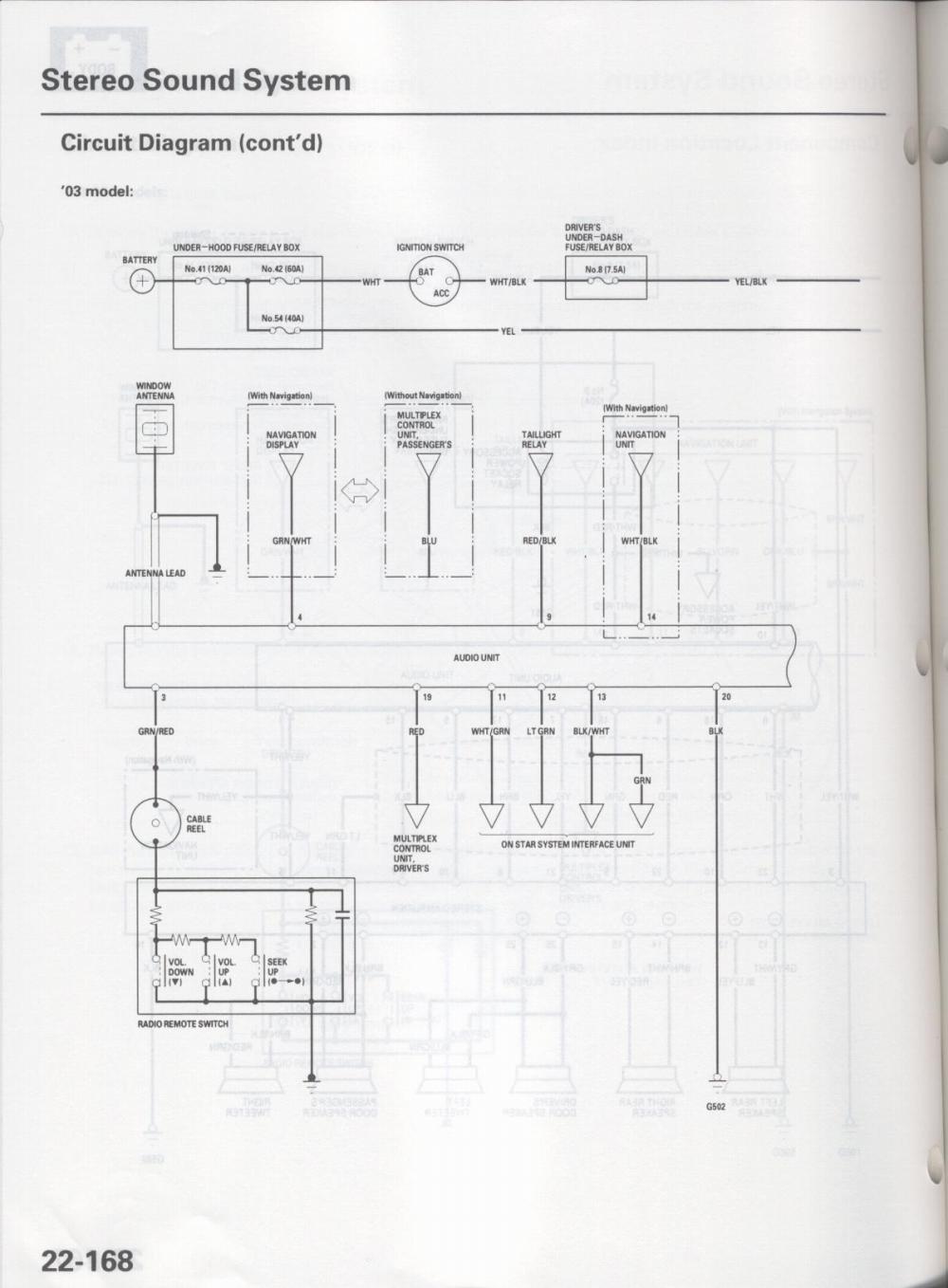

http://photos.imageevent.com/shawnse...ture%20039.jpg
http://photos.imageevent.com/shawnse...ture%20040.jpg
http://photos.imageevent.com/shawnse...ture%20041.jpg
http://photos.imageevent.com/shawnse...ture%20042.jpg
-----------------------------------------------------------------------------------------------------
Thanks Shawn
These are HUGE, so I’ll just provide web links….
Let me know if you need anything else.
Shawn S
http://photos.imageevent.com/shawnse...ture%20090.jpg
http://photos.imageevent.com/shawnse...ture%20091.jpg
http://photos.imageevent.com/shawnse...ture%20092.jpg
http://photos.imageevent.com/shawnse...ture%20093.jpg
http://photos.imageevent.com/shawnse...ture%20094.jpg
http://photos.imageevent.com/shawnse...ture%20095.jpg
http://photos.imageevent.com/shawnse...ture%20039.jpg
http://photos.imageevent.com/shawnse...ture%20040.jpg
http://photos.imageevent.com/shawnse...ture%20041.jpg
http://photos.imageevent.com/shawnse...ture%20042.jpg
#4
Team Owner
Join Date: Oct 2000
Location: Hellertown, Pa. USA
Age: 57
Posts: 20,014
Likes: 0
Received 0 Likes
on
0 Posts
These are HUGE, so I’ll just provide web links….
Let me know if you need anything else.
Shawn S
http://photos.imageevent.com/shawnse...ture%20090.jpg
http://photos.imageevent.com/shawnse...ture%20091.jpg
http://photos.imageevent.com/shawnse...ture%20092.jpg
http://photos.imageevent.com/shawnse...ture%20093.jpg
http://photos.imageevent.com/shawnse...ture%20094.jpg
http://photos.imageevent.com/shawnse...ture%20095.jpg
http://photos.imageevent.com/shawnse...ture%20039.jpg
http://photos.imageevent.com/shawnse...ture%20040.jpg
http://photos.imageevent.com/shawnse...ture%20041.jpg
http://photos.imageevent.com/shawnse...ture%20042.jpg
Let me know if you need anything else.
Shawn S
http://photos.imageevent.com/shawnse...ture%20090.jpg
http://photos.imageevent.com/shawnse...ture%20091.jpg
http://photos.imageevent.com/shawnse...ture%20092.jpg
http://photos.imageevent.com/shawnse...ture%20093.jpg
http://photos.imageevent.com/shawnse...ture%20094.jpg
http://photos.imageevent.com/shawnse...ture%20095.jpg
http://photos.imageevent.com/shawnse...ture%20039.jpg
http://photos.imageevent.com/shawnse...ture%20040.jpg
http://photos.imageevent.com/shawnse...ture%20041.jpg
http://photos.imageevent.com/shawnse...ture%20042.jpg
Trending Topics
#9
Senior Moderator
Thread Starter
Originally Posted by ashek
Does anyone know where I can get the 20 pin wire harness so I don't have to cut the stock wires to the NAV?
#13
Senior Moderator
Thread Starter
Originally Posted by mrsteve
Scott I have hard copies of the diagrams as well. I can fax them to you if you'd like.
#15
Senior Moderator
Thread Starter
Originally Posted by ashek
Does anyone know where I can get the 20 pin wire harness so I don't have to cut the stock wires to the NAV?
#17
Senior Moderator
Thread Starter
The company we use here at work to purchase connectors is www.molex.com and they supply tons of different connectors.. I'm not sure the specific one you would need.. Maybe contact Vsolokov and maybe he'll help you out a little further.. If I get my PnP harness anytime soon I'll hit you up and let you know what it is..
Also we use Tyco/Amp electronics..
Also we use Tyco/Amp electronics..
#19
666 Speed
iTrader: (2)
Join Date: Sep 2005
Location: Sinking Spring, PA
Age: 38
Posts: 2,088
Likes: 0
Received 1 Like
on
1 Post
I know this is a little old, but I was wondering if someone has the climate control wiring for the car with Navi and without.
Question I have is, Do the non navi-wiring harness for the CC plug into the Navi CC? If not, then if someone could email both of them to me that would be great. artbran (at) gmail (dot) com
And in those diagrams, whats the:
reverse relay?
Multiplex control unit (drivers)?
Multiplex control unit (pass.)?

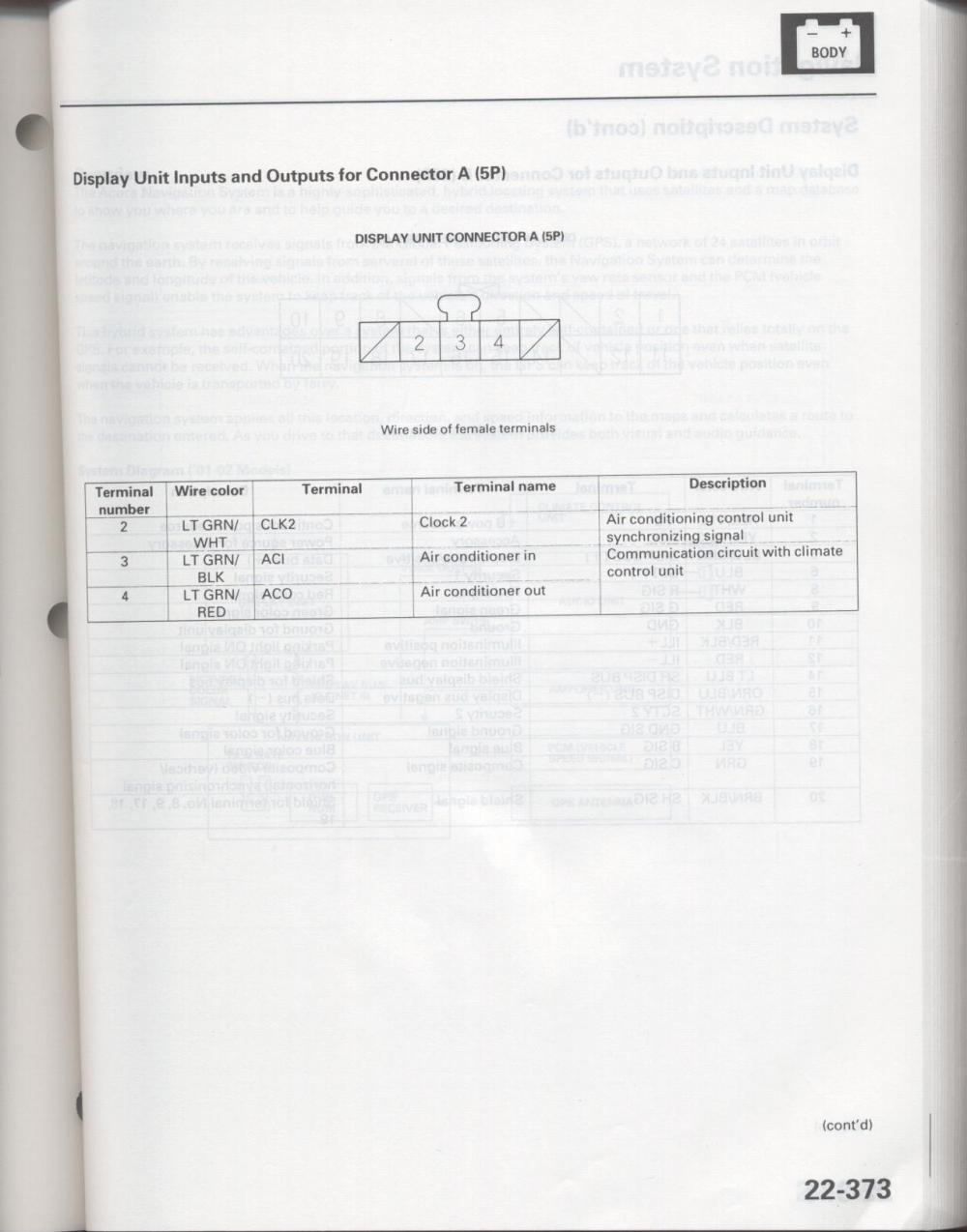

And why are there only 3 wires going to the CC? (clock, CC in, CC out)
Question I have is, Do the non navi-wiring harness for the CC plug into the Navi CC? If not, then if someone could email both of them to me that would be great. artbran (at) gmail (dot) com
And in those diagrams, whats the:
reverse relay?
Multiplex control unit (drivers)?
Multiplex control unit (pass.)?
And why are there only 3 wires going to the CC? (clock, CC in, CC out)
Thread
Thread Starter
Forum
Replies
Last Post
cycdaniel
1G TSX Performance Parts & Modifications
8
12-17-2019 10:58 AM
Soul_Deamon
Audio, Video, Electronics & Navigation
7
11-13-2018 04:44 PM
