Fusion Fog Light Retrofit
I finally completed my HID retrofit for the fogs in my 2005 Tundra. ...after 10 months of slow progress
.
I figured I would share here so people considering an HID upgrade can realize you don't have to drop $$$ on projectors to do an upgrade correctly and keep from blinding people. I used fog light projectors from the Ford Fusion, and mounted them inside the fog light assembly of the Tundra. It is my understanding that these projectors are shared with a few other F-L-M cars as well, but I got mine from a member on HID Planet for $89.

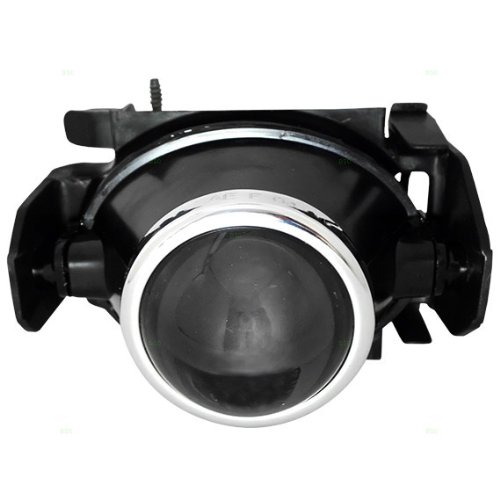

Here is the projector assembly. The bracket is held on by two screws on each side of the projector. I removed the bracket, drilled my fog assemblies, and screwed the projector in to mount them. The lens is 1.75" IIRC.
![](http://ecx.images-amazon.com/images/I/41Kj9XYybnL.jpg)
![](https://lh5.googleusercontent.com/-lONS3l6wFZ0/UtgbguQaJlI/AAAAAAAABzY/O-Mynd7lsCw/s1600/IMG_1050.jpeg)
The top picture is the OEM halogens, and the bottom is Morimoto 3Five 5000k. The left side has been aligned to match the right side after the pic. I need to add a bracket so they stay in place better.
![Tomato](https://acurazine.com/forums/images/smilies/tomato.gif)
I figured I would share here so people considering an HID upgrade can realize you don't have to drop $$$ on projectors to do an upgrade correctly and keep from blinding people. I used fog light projectors from the Ford Fusion, and mounted them inside the fog light assembly of the Tundra. It is my understanding that these projectors are shared with a few other F-L-M cars as well, but I got mine from a member on HID Planet for $89.
Here is the projector assembly. The bracket is held on by two screws on each side of the projector. I removed the bracket, drilled my fog assemblies, and screwed the projector in to mount them. The lens is 1.75" IIRC.
![](http://ecx.images-amazon.com/images/I/41Kj9XYybnL.jpg)
![](https://lh5.googleusercontent.com/-lONS3l6wFZ0/UtgbguQaJlI/AAAAAAAABzY/O-Mynd7lsCw/s1600/IMG_1050.jpeg)
The top picture is the OEM halogens, and the bottom is Morimoto 3Five 5000k. The left side has been aligned to match the right side after the pic. I need to add a bracket so they stay in place better.
![](https://lh5.googleusercontent.com/--w1LS8Ut7Gs/Utgbgz75XmI/AAAAAAAABzc/sEdrvQeT1pQ/s1405/Fusion_retrofit.png)
