LED's Around Navi/AC Are OUT!!
2005 Acura TL
I was replacing my LED's that are around the navigation screen/and that control the AC because some of them were out and I was changing the color of the LED's I had replaced the four LED's on the right side and had them all working properly, when I started working on the left side I noticed that all of the ones on the right side were no longer working and that the one that was working on the left side was no longer working. I tried turning the LED's to make sure that they were connected correctly, and still no luck. After reconnecting the connector(s) in the back of the navigation screen correctly and then replacing the navigation screen itself the result remained the same. The only lights that are working are the Dual (green dot) on the left side and the Car symbol and front and rear defroster light (orange dot) for the AC on the right hand side. (Those are not LED's though!) If anyone can help me with this issue so that I can get my lights working on this again properly I would greatly appreciate it!!
- Navigation screen wasn't working prior to this.
- LED's/Lights for the radio (under navi.) are still working
I was replacing my LED's that are around the navigation screen/and that control the AC because some of them were out and I was changing the color of the LED's I had replaced the four LED's on the right side and had them all working properly, when I started working on the left side I noticed that all of the ones on the right side were no longer working and that the one that was working on the left side was no longer working. I tried turning the LED's to make sure that they were connected correctly, and still no luck. After reconnecting the connector(s) in the back of the navigation screen correctly and then replacing the navigation screen itself the result remained the same. The only lights that are working are the Dual (green dot) on the left side and the Car symbol and front and rear defroster light (orange dot) for the AC on the right hand side. (Those are not LED's though!) If anyone can help me with this issue so that I can get my lights working on this again properly I would greatly appreciate it!!
- Navigation screen wasn't working prior to this.
- LED's/Lights for the radio (under navi.) are still working
#3
So I removed all LEDs and tested each opening with the meter. No power going to bulb sockets but the main green plug connecting to nav (red/black wire) is showing voltage with lights turning on/off. Is it possible we both fried something internally in the nav screen??
#4
10th Gear
Thread Starter
Join Date: May 2017
Location: VA 757
Age: 35
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
LED's Arounf Nav/AC Are OUT!!
So I removed all LEDs and tested each opening with the meter. No power going to bulb sockets but the main green plug connecting to nav (red/black wire) is showing voltage with lights turning on/off. Is it possible we both fried something internally in the nav screen??
#5
Well after messing with it for a while and taking it apart I eventually blew #4? Fuse I think. (Small lights) what it said on the fuse cover under the hood. But that took out the lights on the steering wheel, arm rest. Lower portion of the radio, heated seats and also all the parking lights
#6
Senior Moderator
That's the fuse
#7
Yup, and that fuse fixed all the lights besides the ones around the navi screen. All of those are still not getting power. Ive literally checked everything at this point and I'm at a loss
Trending Topics
#8
Burning Brakes
When I was changing my Hazard Lights bulb to an LED, I blew the small lights fuse as well. It took out all of my internal lights.
If your HVAC lights are still not working/you can't figure it out, it may be easier to get those two circuit boards replaced. I recommend buying a cheap replacement HVAC unit on eBay or something, which will cost you $40-$50. My understanding is that the buttons underneath your navi screen are working, so you could just buy a cheap non-navi replacement, because all you need are the circuit boards underneath the side buttons. I bought an 04-06 HVAC unit for $40 on eBay two months ago. I plan to use this spare part for a future tablet install.
It's obviously up to you, but sometimes buying replacement parts are worth saving additional headaches/stress.
If your HVAC lights are still not working/you can't figure it out, it may be easier to get those two circuit boards replaced. I recommend buying a cheap replacement HVAC unit on eBay or something, which will cost you $40-$50. My understanding is that the buttons underneath your navi screen are working, so you could just buy a cheap non-navi replacement, because all you need are the circuit boards underneath the side buttons. I bought an 04-06 HVAC unit for $40 on eBay two months ago. I plan to use this spare part for a future tablet install.
It's obviously up to you, but sometimes buying replacement parts are worth saving additional headaches/stress.
#9
Burning Brakes
04 05 06 07 08 ACURA TL "LEFT" CLIMATE CONTROL TEMPERATURE UNIT HVAC OEM C2090 | eBay
It looks like some vendors actually also sell the climate control buttons separately as well. That's also an option.
It looks like some vendors actually also sell the climate control buttons separately as well. That's also an option.
#10
10th Gear
Thread Starter
Join Date: May 2017
Location: VA 757
Age: 35
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
When I was changing my Hazard Lights bulb to an LED, I blew the small lights fuse as well. It took out all of my internal lights.
If your HVAC lights are still not working/you can't figure it out, it may be easier to get those two circuit boards replaced. I recommend buying a cheap replacement HVAC unit on eBay or something, which will cost you $40-$50. My understanding is that the buttons underneath your navi screen are working, so you could just buy a cheap non-navi replacement, because all you need are the circuit boards underneath the side buttons. I bought an 04-06 HVAC unit for $40 on eBay two months ago. I plan to use this spare part for a future tablet install.
It's obviously up to you, but sometimes buying replacement parts are worth saving additional headaches/stress.
If your HVAC lights are still not working/you can't figure it out, it may be easier to get those two circuit boards replaced. I recommend buying a cheap replacement HVAC unit on eBay or something, which will cost you $40-$50. My understanding is that the buttons underneath your navi screen are working, so you could just buy a cheap non-navi replacement, because all you need are the circuit boards underneath the side buttons. I bought an 04-06 HVAC unit for $40 on eBay two months ago. I plan to use this spare part for a future tablet install.
It's obviously up to you, but sometimes buying replacement parts are worth saving additional headaches/stress.
#11
Burning Brakes
Maybe, I'd have to show you a picture of what I"m talking about. I currently have them disassembled, so I can take a picture when I'm home from work.
You can disassemble the HVAC button clusters by removing a few screws to gain access to the circuit boards underneath. The orange and green lights (that you're referring to) are soldered to the circuit boards. There are hols in the circuit boards for where you twist the neo wedge bulbs replacement bulbs. In the circle openings, there are two metal contact points on the circuit board, one negative and one positive. When the bulb is twisted in with the correct polarity , they should light up if the LEDs are in working condition. If you think that you fried the leads going to the LEDs on the circuit board itslef, this would be a solution to that problem.
Have you tested your LEDs to make sure they are still in good working condition? You can do this with a multi meter or by testing the LEDs in another spot that is easy to access in your car such as your gague cluster.
Or, like Jakub Majkut , have you tested the boards themselves to see if the LED contact points are receiving power?
You can disassemble the HVAC button clusters by removing a few screws to gain access to the circuit boards underneath. The orange and green lights (that you're referring to) are soldered to the circuit boards. There are hols in the circuit boards for where you twist the neo wedge bulbs replacement bulbs. In the circle openings, there are two metal contact points on the circuit board, one negative and one positive. When the bulb is twisted in with the correct polarity , they should light up if the LEDs are in working condition. If you think that you fried the leads going to the LEDs on the circuit board itslef, this would be a solution to that problem.
Have you tested your LEDs to make sure they are still in good working condition? You can do this with a multi meter or by testing the LEDs in another spot that is easy to access in your car such as your gague cluster.
Or, like Jakub Majkut , have you tested the boards themselves to see if the LED contact points are receiving power?
#12
10th Gear
Thread Starter
Join Date: May 2017
Location: VA 757
Age: 35
Posts: 14
Likes: 0
Received 0 Likes
on
0 Posts
Maybe, I'd have to show you a picture of what I"m talking about. I currently have them disassembled, so I can take a picture when I'm home from work.
You can disassemble the HVAC button clusters by removing a few screws to gain access to the circuit boards underneath. The orange and green lights (that you're referring to) are soldered to the circuit boards. There are hols in the circuit boards for where you twist the neo wedge bulbs replacement bulbs. In the circle openings, there are two metal contact points on the circuit board, one negative and one positive. When the bulb is twisted in with the correct polarity , they should light up if the LEDs are in working condition. If you think that you fried the leads going to the LEDs on the circuit board itslef, this would be a solution to that problem.
Have you tested your LEDs to make sure they are still in good working condition? You can do this with a multi meter or by testing the LEDs in another spot that is easy to access in your car such as your gague cluster.
Or, like Jakub Majkut , have you tested the boards themselves to see if the LED contact points are receiving power?
You can disassemble the HVAC button clusters by removing a few screws to gain access to the circuit boards underneath. The orange and green lights (that you're referring to) are soldered to the circuit boards. There are hols in the circuit boards for where you twist the neo wedge bulbs replacement bulbs. In the circle openings, there are two metal contact points on the circuit board, one negative and one positive. When the bulb is twisted in with the correct polarity , they should light up if the LEDs are in working condition. If you think that you fried the leads going to the LEDs on the circuit board itslef, this would be a solution to that problem.
Have you tested your LEDs to make sure they are still in good working condition? You can do this with a multi meter or by testing the LEDs in another spot that is easy to access in your car such as your gague cluster.
Or, like Jakub Majkut , have you tested the boards themselves to see if the LED contact points are receiving power?
#13
Yeah I tested the led contact points and none of them are getting power. I'm getting a free navi screen tomorrow from a buddy so I'll be testing again. I was thinking those birds went bad too. Now I don't wanna try the leds in the again cuz if it dies again ill be pretty mad lol
#14
Burning Brakes
Once you remove the cluster buttons, you just have to remove a few screws and clips to gain access to the circuit boards underneath.
After you remove the circuit boards, you'll be able to see what I"m talking about. The orange and green bulbs are soldered to the boards themselves and the neo wedge twist-in bulbs are actually connected to the board as well.

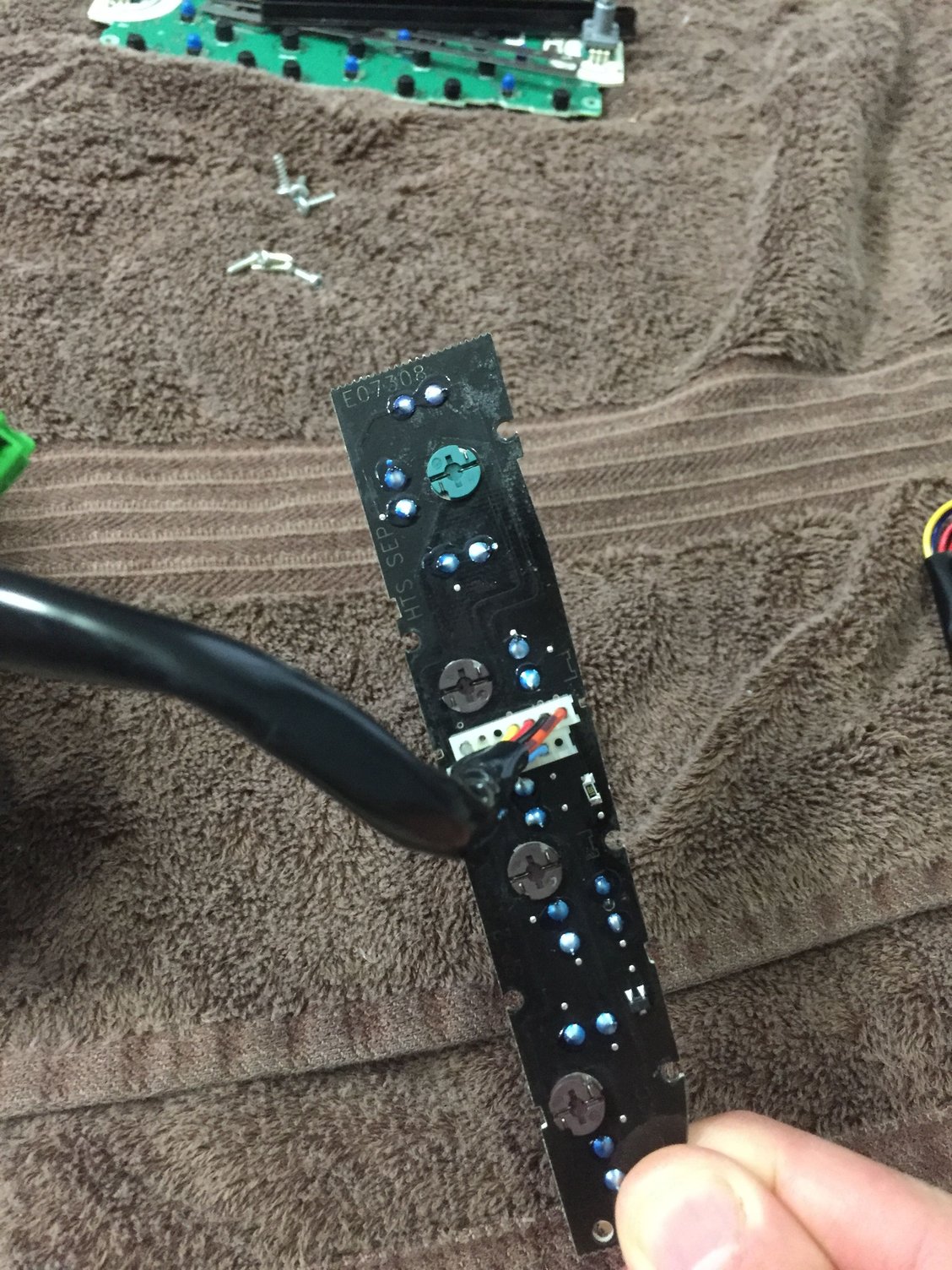

Left Cluster Front
