Replacing broken wheel lug stud
#1
Tristate Vip Crew
Thread Starter
Replacing broken wheel lug stud

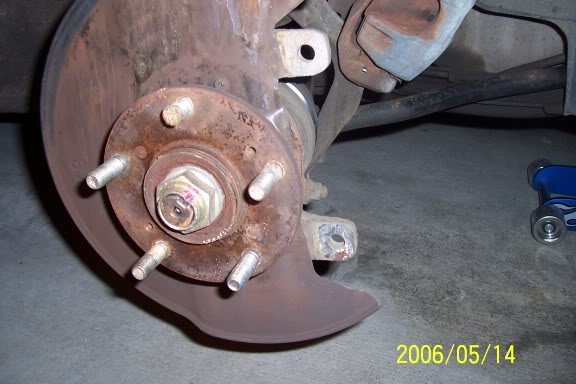

Ok this is the quick and dirty way to remove a broken wheel stud. Here is the culprit.
This next pic is taken with the following things already done: e brake on, wheel removed, car lifted and the back wheels block to prevent the car from rolling back.
Next thing we have to do is remove the screws holding in the brake line....
and remove the brake caliper, this is a pic of one of the screws that must be removed, I couldnt get a good pic of the other screw which is under the caliper....
once the caliper is off make sure you support it with a wire hanger, you do not want it supported by only the brake line.
To remove the rotors you need to remove the two screws that hold it in place.
here is a pic of the screws partially removed.
As a side note I had to do this once already about two months ago so the screws were not that troublesome, previously however they were a pain in the a## to remove. I went to sears and purchased a impact screwdriver and a big hammer and banged away. I also enlisted the help off my friend PB blaster purchased at Autozone.
Next is a pic of the rotor removed.....
Next thing I did was turn the wheel hub (part that holds the wheel studs) so that the broken stud faces the cutout on the heat shield where the brake caliper sits.
This next pic is taken with the following things already done: e brake on, wheel removed, car lifted and the back wheels block to prevent the car from rolling back.
Next thing we have to do is remove the screws holding in the brake line....
and remove the brake caliper, this is a pic of one of the screws that must be removed, I couldnt get a good pic of the other screw which is under the caliper....
once the caliper is off make sure you support it with a wire hanger, you do not want it supported by only the brake line.
To remove the rotors you need to remove the two screws that hold it in place.
here is a pic of the screws partially removed.
As a side note I had to do this once already about two months ago so the screws were not that troublesome, previously however they were a pain in the a## to remove. I went to sears and purchased a impact screwdriver and a big hammer and banged away. I also enlisted the help off my friend PB blaster purchased at Autozone.
Next is a pic of the rotor removed.....
Next thing I did was turn the wheel hub (part that holds the wheel studs) so that the broken stud faces the cutout on the heat shield where the brake caliper sits.
#2
Tristate Vip Crew
Thread Starter
Next was to get a hammer a screw driver and bang bang bang, here is a pic of the lug partially out
As a side note the heat shield gets banged up nicley at this point but it can be banged back into place.
Here is a pic of the lug removed and the banged up heat shield...
Next just put the new stud in from the backside of the hub and bang it into place, here is a pic of the new stud in place.
After that put everything back together lower the car and go for a test drive to make sure everything is in good working order. Thats it. I am sorry if this isnt the best post but after all it is mother's day and my wife is looking at me kinda cross eyed. I hope this helps someone out, if it does then mission accomplished.
As a side note the heat shield gets banged up nicley at this point but it can be banged back into place.
Here is a pic of the lug removed and the banged up heat shield...
Next just put the new stud in from the backside of the hub and bang it into place, here is a pic of the new stud in place.
After that put everything back together lower the car and go for a test drive to make sure everything is in good working order. Thats it. I am sorry if this isnt the best post but after all it is mother's day and my wife is looking at me kinda cross eyed. I hope this helps someone out, if it does then mission accomplished.
The following 2 users liked this post by jleon2516:
josiahmgillespie (08-16-2020),
luvinit (04-08-2013)
#3
Cruisin'
Join Date: Jan 2005
Location: Hershey, PA
Age: 49
Posts: 18
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by jleon2516
Ok this is the quick and dirty way to remove a broken wheel stud. Here is the culprit.
This next pic is taken with the following things already done: e brake on, wheel removed, car lifted and the back wheels block to prevent the car from rolling back.
Next thing we have to do is remove the screws holding in the brake line....
and remove the brake caliper, this is a pic of one of the screws that must be removed, I couldnt get a good pic of the other screw which is under the caliper....
once the caliper is off make sure you support it with a wire hanger, you do not want it supported by only the brake line.
To remove the rotors you need to remove the two screws that hold it in place.
here is a pic of the screws partially removed.
As a side note I had to do this once already about two months ago so the screws were not that troublesome, previously however they were a pain in the a## to remove. I went to sears and purchased a impact screwdriver and a big hammer and banged away. I also enlisted the help off my friend PB blaster purchased at Autozone.
Next is a pic of the rotor removed.....
Next thing I did was turn the wheel hub (part that holds the wheel studs) so that the broken stud faces the cutout on the heat shield where the brake caliper sits.
This next pic is taken with the following things already done: e brake on, wheel removed, car lifted and the back wheels block to prevent the car from rolling back.
Next thing we have to do is remove the screws holding in the brake line....
and remove the brake caliper, this is a pic of one of the screws that must be removed, I couldnt get a good pic of the other screw which is under the caliper....
once the caliper is off make sure you support it with a wire hanger, you do not want it supported by only the brake line.
To remove the rotors you need to remove the two screws that hold it in place.
here is a pic of the screws partially removed.
As a side note I had to do this once already about two months ago so the screws were not that troublesome, previously however they were a pain in the a## to remove. I went to sears and purchased a impact screwdriver and a big hammer and banged away. I also enlisted the help off my friend PB blaster purchased at Autozone.
Next is a pic of the rotor removed.....
Next thing I did was turn the wheel hub (part that holds the wheel studs) so that the broken stud faces the cutout on the heat shield where the brake caliper sits.
Trending Topics
#8
Tristate Vip Crew
Thread Starter
Originally Posted by Phrosttz0
good write up man, im just curious, how do you break lug studs? what makes that occur?
#9
Pro
iTrader: (1)
haha and me i snapped 3, 2 completely off till where the rotor was and the other one was snapped in half. crazy but it does happen. my other friend broke 4 at once. well my problem was that i didnt have the correct 14mm for the caliper and i stripped one of the caliper bolts. took it to midas with my own parts they replaced it for 60 dollars. thats because i know the guy. wish i came across this earlier.
#10
Intermediate
Join Date: Nov 2004
Location: orlando,fl
Age: 40
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
hey jleon i tried this on my CLS but couldnt get the stud out. I got the stud out about half way until the head of the stud got stuck against the back piece.(its part #4 here) How did you get around this? Let me know so i can do this ASAP. Thanks in advance
Andres
Andres
#11
Originally Posted by andr240
hey jleon i tried this on my CLS but couldnt get the stud out. I got the stud out about half way until the head of the stud got stuck against the back piece.(its part #4 here) How did you get around this? Let me know so i can do this ASAP. Thanks in advance
Andres
Andres
#12
2G TLX-S
Originally Posted by Phrosttz0
good write up man, im just curious, how do you break lug studs? what makes that occur?
#13
Hey guys,
I had a stud already removed. Assuming that I purchase a stud from Acura (anyone know how much and the part number?), what tools do I need and time required to replace it? This post says that you have to hammer it back in? Much appreciated!
I had a stud already removed. Assuming that I purchase a stud from Acura (anyone know how much and the part number?), what tools do I need and time required to replace it? This post says that you have to hammer it back in? Much appreciated!
#14
10th Gear
Join Date: Feb 2006
Location: Lawrence, KS
Age: 38
Posts: 13
Likes: 0
Received 0 Likes
on
0 Posts
Good instructions and great detail with the pictures. The only thing I would suggest is instead of hammering the new stud in and run the risk of damaging it, use a lug nut and a stack of washers then drive it in with an impact wrench. This will press the stud in correctly and ensure a tight fit.
#15
ZK.TBK.SCR.BIA.X408
Join Date: Mar 2007
Location: SAN4JOSE, KILLAFORNIA
Age: 39
Posts: 101
Likes: 0
Received 0 Likes
on
0 Posts
fuck dude i thought you had to take the hub nut off..last time i got my tires replaced some fuck messed up and two lugs on my driver side broke off. i was trying for days to get the hub nut off and that shit wouldn't budge especially with the dimple
thanks bruh i needed this shit!
thanks bruh i needed this shit!
#16
here's my 2 cents...my 02 tls didn't have the cutout so I filed one edge of the back of the stud enough to hammer it out past the heat shield. i had to file the new stud to, to get it in. on this stud, I used my lock nut
#18
Senior Moderator
http://www.acuraautomotiveparts.org/...catdisplay.jsp
#21
I just wanna say thank you. I like my new to me car. Its a project I wanna make it a first car for my exceptionally responsible son when he turns 16 in 5 years. He learned the basics in my '03 protege5 hatchback. Insurance is gonna kill me but he does so good in school he's worth a little headache I'm having getting the car in order for him.
The following 2 users liked this post by MilwaukeeDave:
assclown (04-09-2013),
justnspace (04-09-2013)
#26
Instructor
Last time I had to replace studs, i just replaced them all.
I figured if some retard over tightened something, he probably damaged the other studs too. They are cheap, and better safe than sorry.
I figured if some retard over tightened something, he probably damaged the other studs too. They are cheap, and better safe than sorry.
#27
Cruisin'
To remove the broken stud, try to thread a lug nut on it. Then hammer away at the lug nut to push the stud through. If you mushroom the broken end of the stud, it may not fit through the hole to take it out.
