Request for Wiring Diagram: Reverse Camera

Thread Tools

Search this Thread

Old Nov 25, 2024 | 05:08 PM
Share
  #1
wusty23jd's Avatar
wusty23jd
Thread Starter
Three Wheelin'
10 Year Member
Liked
Loved
Community Favorite

Joined: Apr 2015
Posts: 1,298
Likes: 257
From: Grand Rapids, MI
Request for Wiring Diagram: Reverse Camera
As the title suggests, does anyone have a wiring pin out diagram for the OEM reverse camera for the 20013-2018 Acura RDX?



Reply
0
Old Nov 26, 2024 | 06:48 PM
Share
  #2
altair47's Avatar
altair47
Three Wheelin'
5 Year Member
Liked
Loved
Community Favorite

Joined: Jun 2016
Posts: 1,860
Likes: 598


Reply
1
Old Nov 26, 2024 | 11:35 PM
Share
  #3
wusty23jd's Avatar
wusty23jd
Thread Starter
Three Wheelin'
10 Year Member
Liked
Loved
Community Favorite

Joined: Apr 2015
Posts: 1,298
Likes: 257
From: Grand Rapids, MI

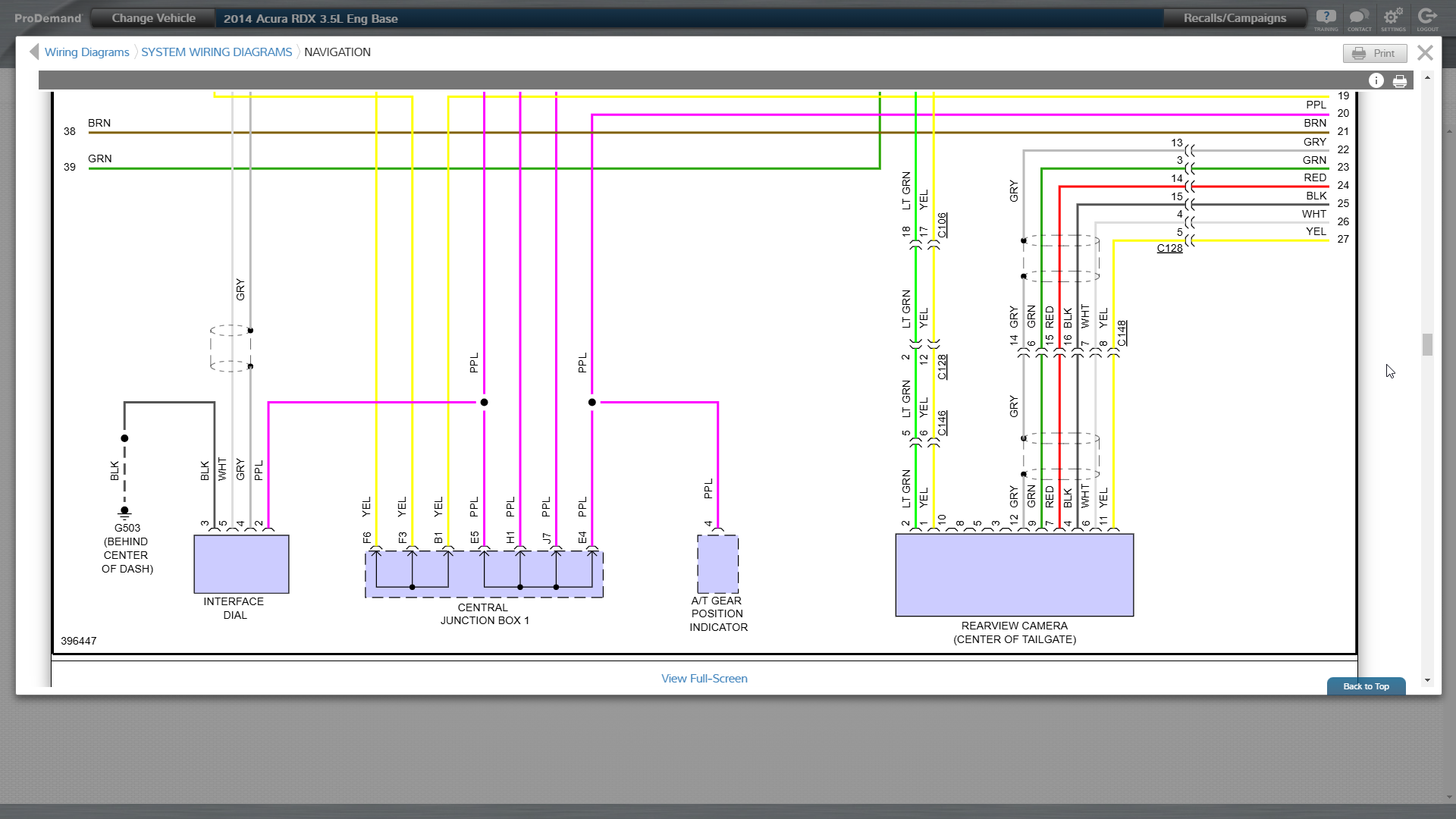

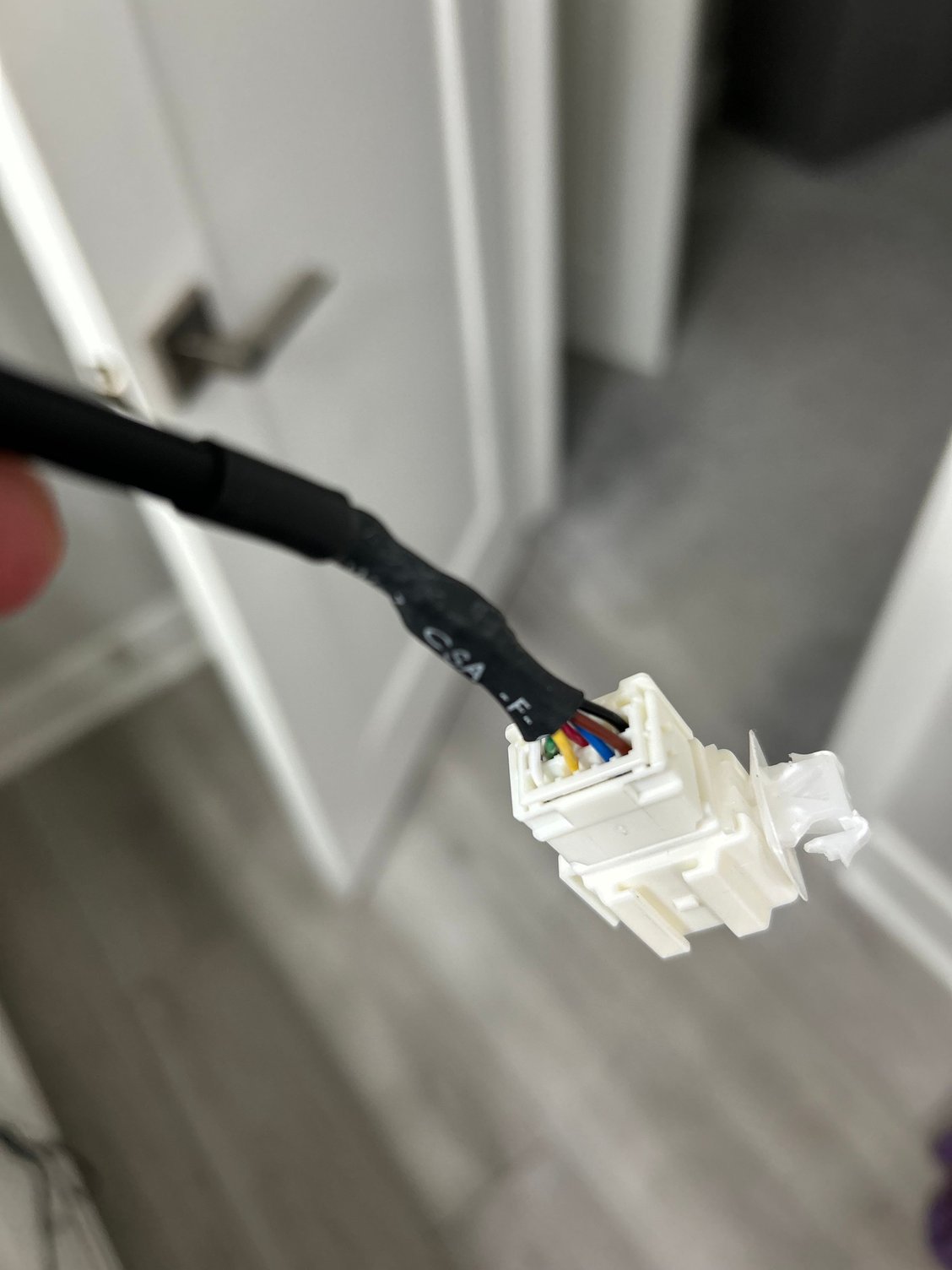

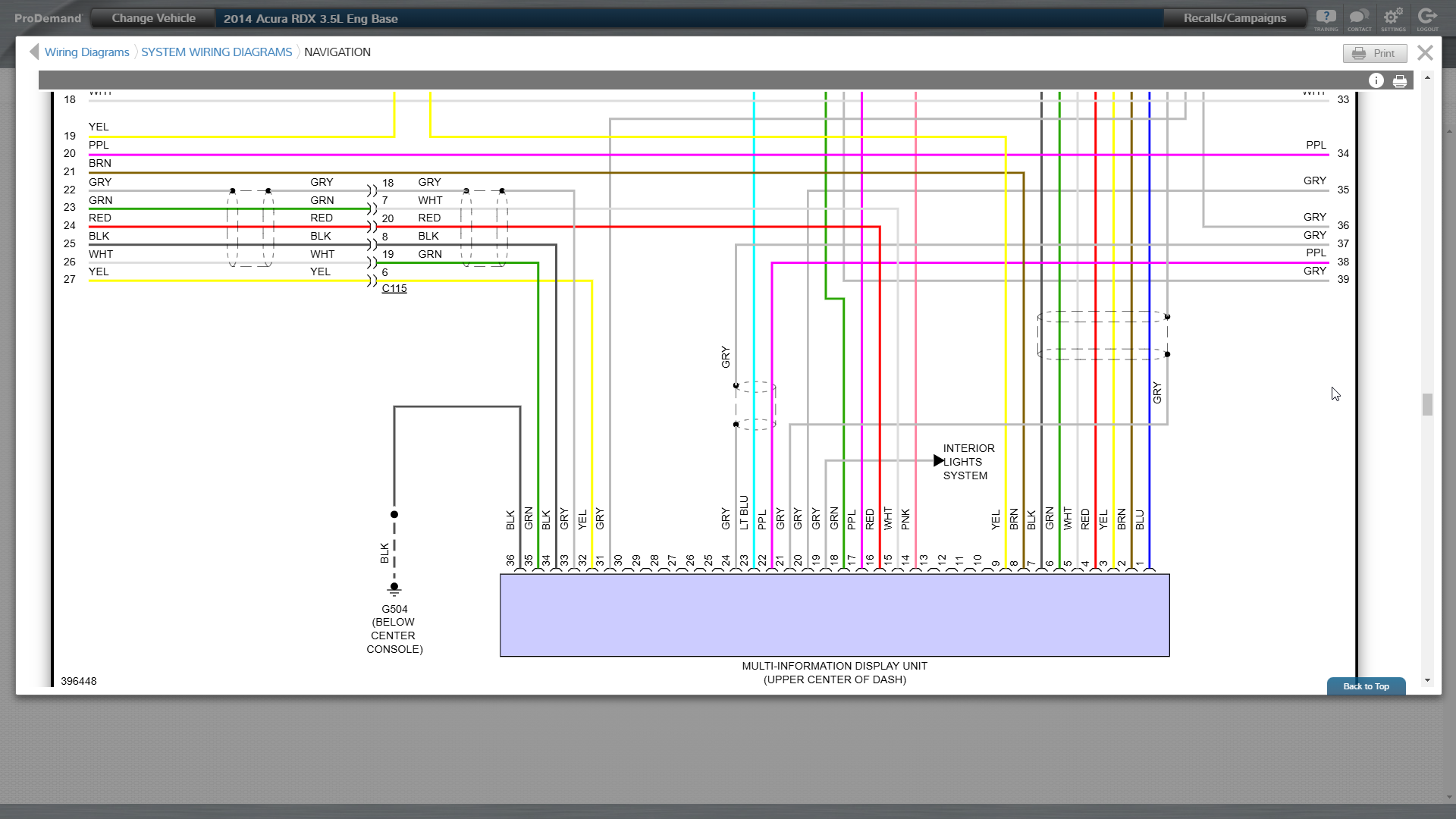

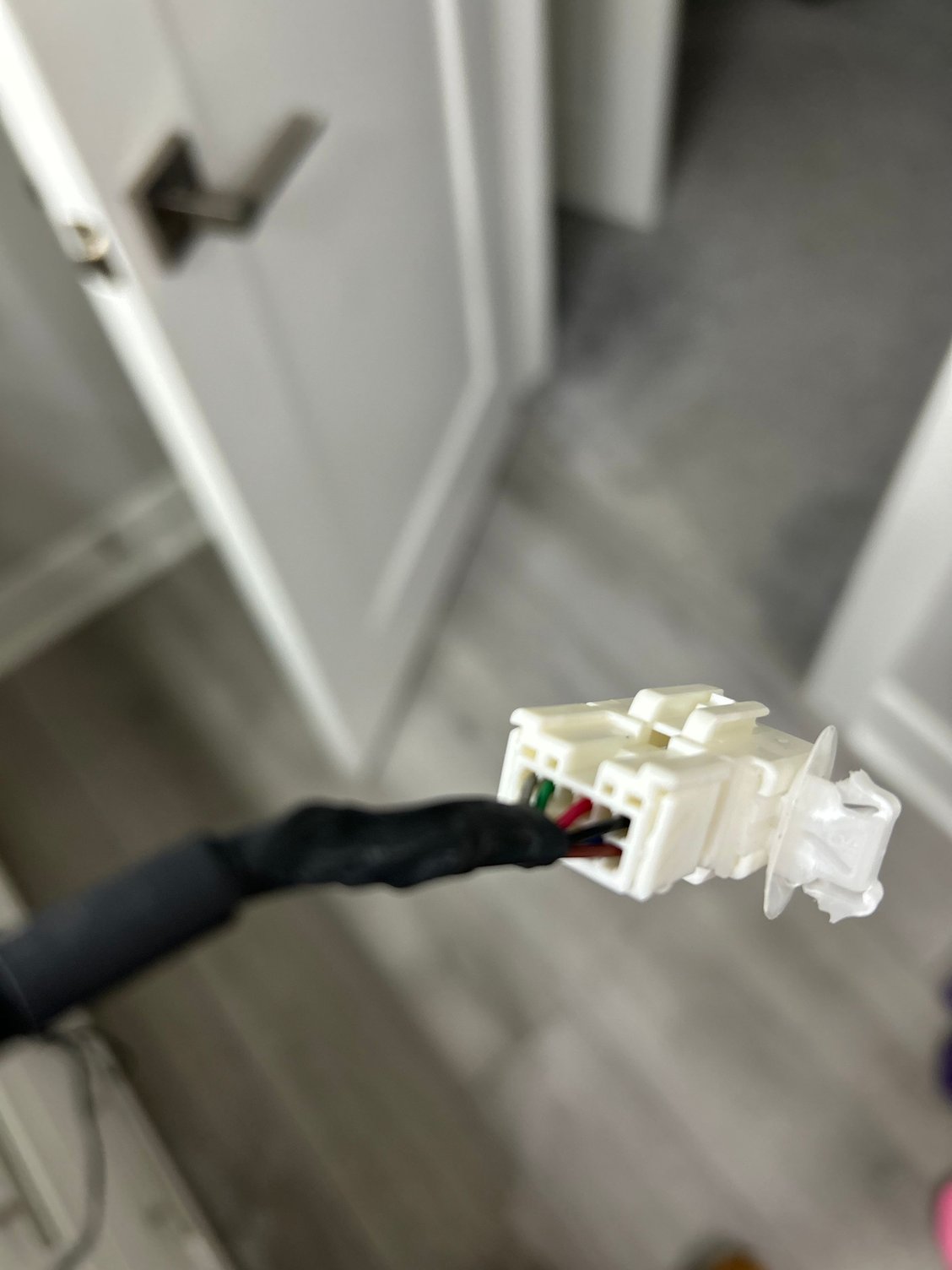

Thanks for this. Unfortunately, I’m still looking for the pinout diagram which lists the function of each terminal.

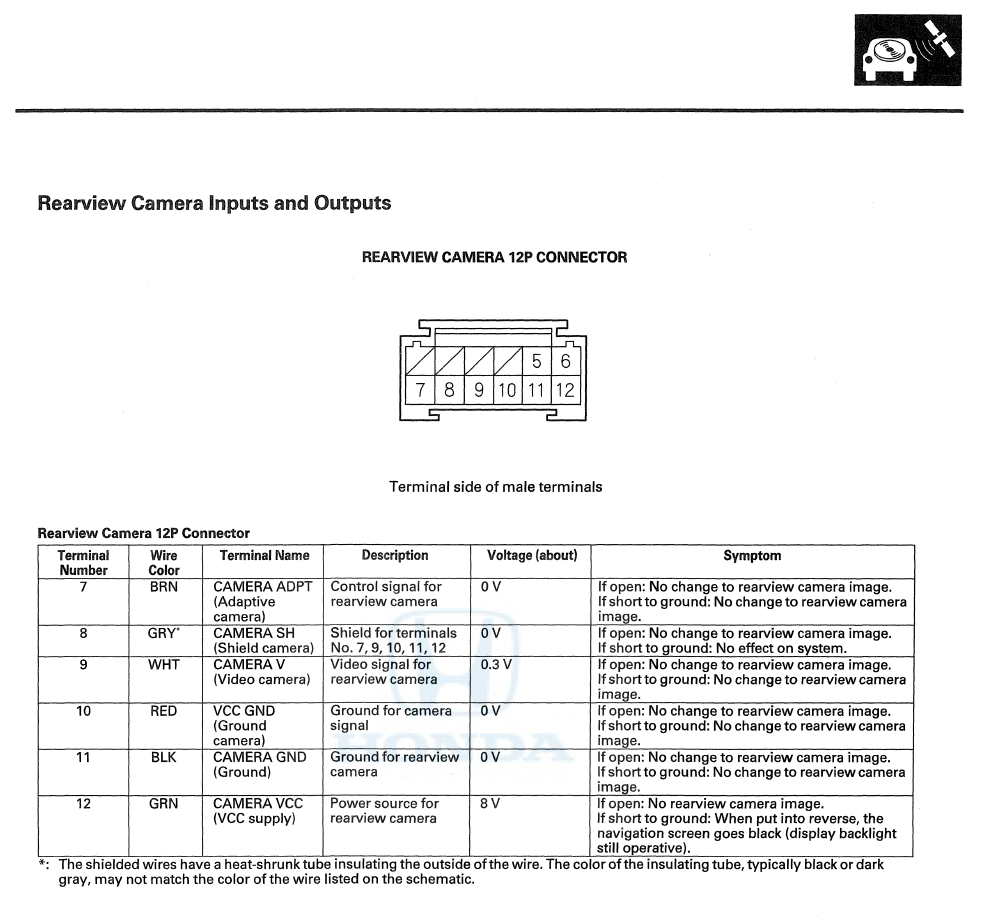

This is an example of what I’m looking for. I think this came from the 4g TLs

Reply
0
