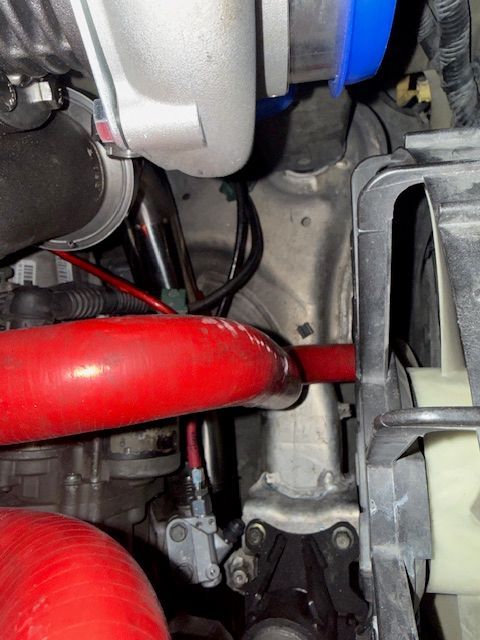

In this angle you can see how it's routed under the front motor mount then up in front of the transmission and it's about a 90 degree angle up to the turbo. All of the piping is 2.5". Right when it gets to the turbo it is 3" pipe going into the turbo.
