1999-2003 Acura TL Illuminated Door Sills Group Buy.
#42
Originally Posted by datboipat
I live in Bellaire. Right around 59 and 610. You?
Originally Posted by yunginTL
where in htown?
Thanks.
#43
Guys only Solid Blue is for Sale and is coming in on the ship that is due to arrive. I only have 3 confirmed orders, Help me spread the word if we want to continue with this project, 99-03 Acura TL and TLS Stainless Steel Door SIlls.
Pics will be ready as soon as they arrive and I have them installed on my 99.
Thanks
Dave
Pics will be ready as soon as they arrive and I have them installed on my 99.
Thanks
Dave
#46
USMC Butterbars
Join Date: Aug 2001
Location: VA
Age: 40
Posts: 1,796
Likes: 0
Received 0 Likes
on
0 Posts
Guys, I just PM'ed Dave about possibly getting 'INSPIRE' lettering instead of 'ACURA'. We need at least 10 ppl to make this happen. Who's in?
'INSPIRE' illuminated sills:
1) shimbo519
2)
3)
4)
5)
6)
7)
8)
9)
10)
'INSPIRE' illuminated sills:
1) shimbo519
2)
3)
4)
5)
6)
7)
8)
9)
10)
#48
Racer
Join Date: May 2003
Location: PA
Posts: 270
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by TL260power
so how bout it guys?????? anybody wanna join me to get the Type S logo??????
Im in....
Im in....
HEY,
I AM IN for ACURA Type S logo or just ACURA in white...
Let me know.
#50
Racer
Join Date: Oct 2002
Location: South Philly
Age: 38
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by shimbo519
Guys, I just PM'ed Dave about possibly getting 'INSPIRE' lettering instead of 'ACURA'. We need at least 10 ppl to make this happen. Who's in?
'INSPIRE' illuminated sills:
1) shimbo519
2)JimmyTLS
3)UglyPsycho
4)
5)
6)
7)
8)
9)
10)
'INSPIRE' illuminated sills:
1) shimbo519
2)JimmyTLS
3)UglyPsycho
4)
5)
6)
7)
8)
9)
10)
#57
Full Warranty with purchase if you dont like them. Waiting for the sills to come in and then they will be installed and pics will be taken. To make sure there was not any delay in shipping we rushed to get them on the container.
If you have any questions feel free to e-mail me or call.
If you have any questions feel free to e-mail me or call.
#61
Team Nighthawk Director
Join Date: May 2004
Location: Buffalo Grove, ILL
Age: 40
Posts: 1,594
Likes: 0
Received 0 Likes
on
0 Posts
Can I get my tracking #. My e-mail is bgftbl81@aol.com. Thank you,
#62
Advanced
Join Date: Jul 2004
Location: Houston TX
Age: 37
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
can you send my tracking number to datboipat@hotmail.com please? thanks
#63
Guys all sills are shipping, We had to get the 2004+ out first as they ordered first. I have the sills getting installed and instructions are getting drawn up. So as of tomorrow everybody will have gone out. I will follow up with an e-mail pdf of the instructions as soon as they are done. If you have any questions call me. Guys you will love them hope you Enjoy.
Dave
Dave
#66
Racer
Join Date: May 2003
Location: PA
Posts: 270
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by ShivaAG2000
I know that blue is the only color available now, but I'm just seeing how many people are interested in getting Acura or Inspire in red.
#67
distinctiv_tuning
Join Date: Dec 2003
Location: Union City, CA ...Bay Area
Age: 39
Posts: 386
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by PhillyTL-S
I am ... Acura in RED
"ACURA" in red List
1. Philly TL-S
2. Veen120
3.
4.
5.
6.
7.
8.
9.
10.
#70
my girly girl
Join Date: Sep 2004
Location: L.I NY
Age: 38
Posts: 205
Likes: 0
Received 0 Likes
on
0 Posts
what is the deal with these sills.
its april 28th 10 days after they have shipped.
have people gotten them?
how did the install go?
is it worth buying?
pictures please!!
i kno the 2004 sill thread some people are angry because they cant get it hooked up
its april 28th 10 days after they have shipped.
have people gotten them?
how did the install go?
is it worth buying?
pictures please!!
i kno the 2004 sill thread some people are angry because they cant get it hooked up
#72
Advanced
Join Date: Jul 2004
Location: Houston TX
Age: 37
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
I just got the sills this morning, but havent gotten a chance to put them in. I havent gotten the instructions yet either, but im expecting the install to be pretty time consuming. sorry i couldnt provide more..
#75
Advanced
Join Date: Jul 2004
Location: Houston TX
Age: 37
Posts: 88
Likes: 0
Received 0 Likes
on
0 Posts
Alright, i managed to skip work and install the sills last night, heh heh. Heres a writeup with some pictures, i apologize in advance for not having a lot of good pictures.
First, pick one side of the car to work on, i started with passenger, and pull up both the front and rear factory sills. They're held in with clips, so use a little bit of force, but be careful not to break the clips. Now remove the B-Pillar. Should look like this:
Now unscrew the door switch from the outside, the courtesy lights should turn off. This switch is the ground, so wire the black wire from the inverter to this switch. What i did was mount the inverter to the inside of the B pillar and feed the black wire under the insulation out to the switch. In this next picture, my finger is under the insulation and i can touch the wire to the switch, feed the ground from the inverter through where my finger is:
Now take the black wire from the inverter and tap it into the ground either by splicing it, or what i did was to just stick it in where the wiring harnesses connect, and tape it together.

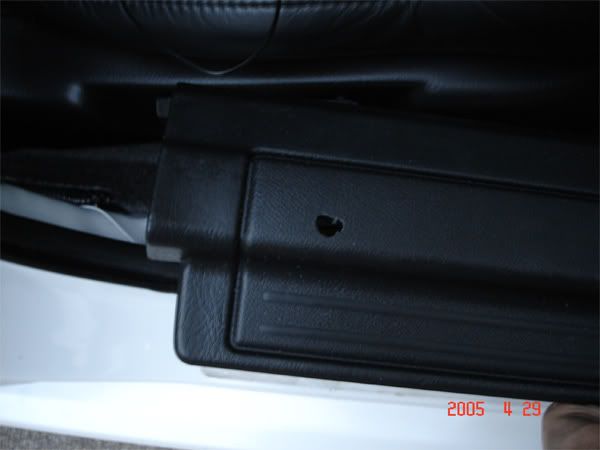

Take the factory sills, and wash them off so the adhesive will stick. Now take the factory sill, and make a hole in it for the wire from the lighted plate to go through. I didnt have a dremel or anything, so i just drilled 3-4 holes with a drill and filed it out a little bit.
Feed the wire from the lighted plate through and connect it with the matching end from the inverter.
Now take some of the extra wire given in the package, and strip the end, and connect it with the red wire from the inverter. This wire is positive, and will plug into the fusebox. what i didnt figure out till later is to leave the wire as it is (red and black, no need to separate) and then use both as +, one for the front sill, one for the back, keeps things neater. Run the wire underneath the sills and such and into the passenger side fusebox. Cut off any excess (be sure to save it, i almost ran out of wire), strip the end, pull the 3rd fuse on the right, put the wire in, put the fuse back, and wiring on one of ur plates should be done. I know the setup right now to the fusebox is pretty ghetto, im gonna get an Add-A-Circuit later.
Pull the backing off the adhesive from the lighted plate, and stick it to the sill, then take the backings off of the adhesive from the sill, and stick it to the factory sills. Dont put the sills back into place yet because the B-Pillar goes under the sills. Now pretty much repeat the process for the back, take some wire, wire it to the door switch, (i ran it underneath the weather stripping) and then wire the red to the positive wire coming from the fusebox. The other side is similar, but i took the other bundle of wire, and fed it from the passenger to the drivers side from behind the radio and then ran it under the sills.
More pictures later.
First, pick one side of the car to work on, i started with passenger, and pull up both the front and rear factory sills. They're held in with clips, so use a little bit of force, but be careful not to break the clips. Now remove the B-Pillar. Should look like this:
Now unscrew the door switch from the outside, the courtesy lights should turn off. This switch is the ground, so wire the black wire from the inverter to this switch. What i did was mount the inverter to the inside of the B pillar and feed the black wire under the insulation out to the switch. In this next picture, my finger is under the insulation and i can touch the wire to the switch, feed the ground from the inverter through where my finger is:
Now take the black wire from the inverter and tap it into the ground either by splicing it, or what i did was to just stick it in where the wiring harnesses connect, and tape it together.
Take the factory sills, and wash them off so the adhesive will stick. Now take the factory sill, and make a hole in it for the wire from the lighted plate to go through. I didnt have a dremel or anything, so i just drilled 3-4 holes with a drill and filed it out a little bit.
Feed the wire from the lighted plate through and connect it with the matching end from the inverter.
Now take some of the extra wire given in the package, and strip the end, and connect it with the red wire from the inverter. This wire is positive, and will plug into the fusebox. what i didnt figure out till later is to leave the wire as it is (red and black, no need to separate) and then use both as +, one for the front sill, one for the back, keeps things neater. Run the wire underneath the sills and such and into the passenger side fusebox. Cut off any excess (be sure to save it, i almost ran out of wire), strip the end, pull the 3rd fuse on the right, put the wire in, put the fuse back, and wiring on one of ur plates should be done. I know the setup right now to the fusebox is pretty ghetto, im gonna get an Add-A-Circuit later.
Pull the backing off the adhesive from the lighted plate, and stick it to the sill, then take the backings off of the adhesive from the sill, and stick it to the factory sills. Dont put the sills back into place yet because the B-Pillar goes under the sills. Now pretty much repeat the process for the back, take some wire, wire it to the door switch, (i ran it underneath the weather stripping) and then wire the red to the positive wire coming from the fusebox. The other side is similar, but i took the other bundle of wire, and fed it from the passenger to the drivers side from behind the radio and then ran it under the sills.
More pictures later.
#77
Guys if you want to spread the word in the other boards and let them know we have these in stock. The group buy is still open at 159.95 Delivered to your door and there is no waiting we have them in stock and can ship asap.
We are also working on trying to get enough intrest to do Red Sills and Possibly white or an Inspire set. I need at least 10 people in each group to bring them to production. SO help me spread the word I still have about 30 Sets of Blue Instock.
Thanks
Dave
Prince Custom Auto
We are also working on trying to get enough intrest to do Red Sills and Possibly white or an Inspire set. I need at least 10 people in each group to bring them to production. SO help me spread the word I still have about 30 Sets of Blue Instock.
Thanks
Dave
Prince Custom Auto
#78
Instructor
Hey,
I live locally in Orange County, any chance of buying these sills and getting them installed? Not too good with wiring. If I can get them installed, I would pick them up, I work in Newburgh.
2003 TL-S
PM Me if Possible
I live locally in Orange County, any chance of buying these sills and getting them installed? Not too good with wiring. If I can get them installed, I would pick them up, I work in Newburgh.
2003 TL-S
PM Me if Possible
