Installation instructions for 2016 RDX LED fog lights

I am considering order OEM Acura 2016 LED fog lights. Does anyone have an pdf instructions/and/or tips for installation?
I thought you have to remove the bumper and get into the dash?
Seems like a lot of work?
Ilovedoughnuts is offline   Reply With Quote
Old 06-03-2015, 04:04 PM   #2
New Member

Join Date: Aug 2013
Posts: 2
Thanks: 0
Thanked 2 Times in 1 Post
You can find the accessories installation instruction in the following link. https://estore.honda.com/acura/acces...&modelName=RDX
mitsu98 is offline   Reply With Quote
The Following 2 Users Say Thank You to mitsu98 For This Useful Post:
5 Acuras (06-13-2015), kfhughes (06-06-2015)
Old 06-12-2015, 07:51 PM   #3
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Installation doesn't look too bad. I have the 2016 Advance and swapping the factory dogs for Morimoto XB 5k LED Foglights. Direct replacement with OEM fitment.

Morimoto's are around $200 instead of $675.

Last edited by carbonTSEX; 06-12-2015 at 07:57 PM.
carbonTSEX is offline   Reply With Quote
Old 06-15-2015, 09:29 AM   #4
Registered Member

Join Date: May 2015
Posts: 10
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by carbonTSEX View Post
Installation doesn't look too bad. I have the 2016 Advance and swapping the factory dogs for Morimoto XB 5k LED Foglights. Direct replacement with OEM fitment.

Morimoto's are around $200 instead of $675.
Which Morimoto is the correct one for the 2016 Advance?

Thanks in advance.
abanytime is offline   Reply With Quote
Old 06-16-2015, 08:37 PM   #5
Registered Member

giovane's Avatar

Join Date: Nov 2014
Location: Houston
Posts: 187
Thanked 47 Times in 35 Posts
Quote:
Originally Posted by abanytime View Post
Which Morimoto is the correct one for the 2016 Advance?

Thanks in advance.
Type S should be fine.

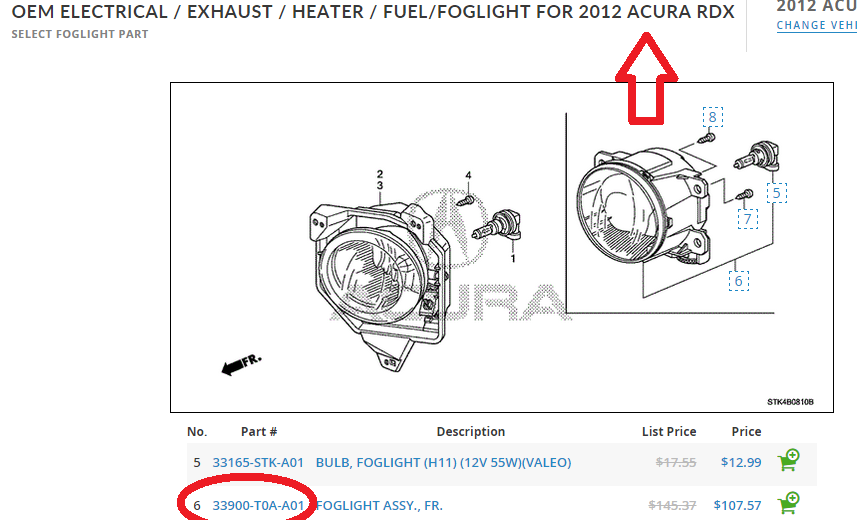

I looked on oemacuraparts.com and 1st gen RDX shares the same foglight assembly with 2nd gen and 2016 2nd gen.

Looks like I found my next mod.
giovane is offline   Reply With Quote
The Following User Says Thank You to giovane For This Useful Post:
abanytime (06-16-2015)
Old 06-16-2015, 08:40 PM   #6
Registered Member

Join Date: May 2015
Posts: 10
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by giovane View Post
Type S should be fine.
I looked on oemacuraparts.com and 1st gen RDX shares the same foglight assembly with 2nd gen and 2016 2nd gen.

Looks like I found my next mod.
Thanks for doing the research giovane.
abanytime is offline   Reply With Quote
Old 06-17-2015, 10:34 PM   #7
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Yes they are the same part. This is the best mod for replacing the oem fog lights with LEDs.
carbonTSEX is offline   Reply With Quote
Old 06-21-2015, 09:21 AM   #8
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Ordered both sets yesterday. Coming in this week.
carbonTSEX is offline   Reply With Quote
Old 06-25-2015, 03:01 PM   #9
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Foglights arrive tomorrow. Not sure if I'll have time to install after work so most likely they'll be on Saturday. I'll post pictures of the RDX and TL with them to give everyone an idea of the yellow and white XB's look like since I ordered both pairs.
carbonTSEX is offline   Reply With Quote
The Following 2 Users Say Thank You to carbonTSEX For This Useful Post:
abanytime (06-25-2015), giovane (06-25-2015)
Old 06-25-2015, 05:39 PM   #10
Registered Member

Join Date: May 2015
Posts: 10
Thanked 0 Times in 0 Posts
Quote:
Originally Posted by carbonTSEX View Post
Foglights arrive tomorrow. Not sure if I'll have time to install after work so most likely they'll be on Saturday. I'll post pictures of the RDX and TL with them to give everyone an idea of the yellow and white XB's look like since I ordered both pairs.
Sounds good, carbonTSEX. I'm looking forward to it.
abanytime is offline   Reply With Quote
Old 06-25-2015, 07:47 PM   #11
Registered Member

giovane's Avatar

Join Date: Nov 2014
Location: Houston
Posts: 187
Thanked 47 Times in 35 Posts
Please take pictures also during the swapping operations.
Really interested on how much room is available once you turn the steering wheel and take the wheel well cover off.
giovane is offline   Reply With Quote
Old 06-25-2015, 11:36 PM   #12
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Ill see what I can do for you. Stay tune.
carbonTSEX is offline   Reply With Quote
Old 06-28-2015, 05:07 PM   #13
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Alright everyone, as promised I snapped some photos during the install for you guys of the LED foglights.

Make: Morimoto
Model: XB (type s) standalone
Temp: 5000k LED
Price: $170 + shipping or $190 + shipping with yellow Laminx film
Tools: Flat head screwdriver, a short and medium phillips screwdrivers
Installation time: 20-30 minutes


Looking from underneath the front bumper prey off the 4 "bitch clips" that hold the bottom plastic to the bumper:



Once you have removed the clips you then want to remove the one screw that holds the bumper to the fender:



After this you will have full access to the foglight housing with plenty of room to work:



To remove the OEM foglight, disconnect the connector from the bulb. Then there are two phillips screws diagonal from each other you want to remove from the back of the foglight. This is where you will need two different size phillips screwdrivers:



After that the foglight comes right out. Here is a comparison between the two:



The next step is to connect the power and ground wires to the supplied female plug in the kit. Make sure you check your factory plug to match the new one. Black goes with black and red goes with white:



Screw in the Morimoto Foglight, connect the plug and reinstall the splash guard and repeat the steps for the opposite side.

Before:



After:





I also installed the same kit on my 2014 TL but with the yellow Laminx they provide. They also turned out really nice:





Overall Impression: Honestly it was worth every penny. Just as nice as the factory option LEDs in my opinion. They shoot a sharp beam just like the Diamond LEDs or HID's with projectors. The install was super easy (plug and play). Best of all the 5000k match the Diamond LEDS perfectly. Same exact color. The 5000k with yellow laminx is a really nice crisp yellow. I highly recommend these for anyone looking to upgrade their factory fogs.
carbonTSEX is offline   Reply With Quote
The Following 10 Users Say Thank You to carbonTSEX For This Useful Post:

Chaptorial (07-18-2015), CJaneDrive (11-03-2015), Comfy (08-04-2015), dirleton (09-25-2015), firstacuratl (10-27-2016), giovane (06-28-2015), jasonsymack (08-04-2015), Jim7707 (07-21-2015), kfhughes (07-18-2015), RSX_Takashi (08-25-2015)
Old 06-28-2015, 06:20 PM   #14
Registered Member

giovane's Avatar

Join Date: Nov 2014
Location: Houston
Posts: 187
Thanked 47 Times in 35 Posts
^ Awesome. Finally a very well done DIY!
giovane is offline   Reply With Quote
The Following User Says Thank You to giovane For This Useful Post:
carbonTSEX (06-28-2015)
Old 07-17-2015, 11:45 AM   #15
'16 FBP Advance FWD

kfhughes's Avatar

Join Date: Mar 2006
Posts: 218
Thanked 12 Times in 9 Posts
Sticky under the 2G Garage?

Quote:
Originally Posted by mitsu98 View Post
You can find the accessories installation instruction in the following link. https://estore.honda.com/acura/acces...&modelName=RDX
This would be useful to have this link to save somewhere else!
kfhughes is offline   Reply With Quote
Old 07-17-2015, 05:31 PM   #16
Registered Member

Jim7707's Avatar

Join Date: Jul 2012
Location: Phoenix, AZ
Posts: 26
Thanked 10 Times in 9 Posts
Thanks for the detailed install pictures.

I just picked up my new 2016 Graphite Luster Advanced Package this morning and ordered a set these lights from Amazon this afternoon. I really can't stand mismatched color temps. between the factory lights (not just an Acura problem). For $600+ I was just going to leave the fogs turned off but for $170 plus easy installation I'm all over this mod.
Jim7707 is offline   Reply With Quote
The Following User Says Thank You to Jim7707 For This Useful Post:
carbonTSEX (07-18-2015)
Old 07-18-2015, 10:02 AM   #17
Registered Member

Join Date: Apr 2001
Location: Long Island, NY
Posts: 18,622
Thanked 4 Times in 4 Posts
Excellent thread and thanks for taking the time to document the install.

I'm still considering an RDX with the Advanced package and was going to purchase the LED fog lights as an accessory. If I do decide to the pull the trigger on an RDX I'll definitely be skipping that option and save some money by purchasing and installing these instead.

Car looks great!
Chaptorial is offline   Reply With Quote
The Following User Says Thank You to Chaptorial For This Useful Post:
carbonTSEX (07-18-2015)
Old 07-18-2015, 02:51 PM   #18
Registered Member

Join Date: Oct 2011
Location: CT
Posts: 36
Thanked 9 Times in 8 Posts
Excellent thread thanks guys. Just picked up my graphite/greystone 16 Adv today. The salesperson was under the impression the fogs were LED. Today she learned something. I will be ordering my Mori's today
wb2ee is offline   Reply With Quote
The Following User Says Thank You to wb2ee For This Useful Post:
carbonTSEX (07-18-2015)
Old 07-18-2015, 02:57 PM   #19
Registered Member

Join Date: Oct 2011
Location: CT
Posts: 36
Thanked 9 Times in 8 Posts
Is there a dealer that is a Acurazine Forum supporter that supplies these? I am seeing them on eBay for $170 including shipping.
wb2ee is offline   Reply With Quote
Old 07-18-2015, 10:08 PM   #20
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Glad I am able to help everyone out and find an alternative that cost less with just as good quality. You could run 3 sets of the morimoto's for the price the dealer charges. Installation is really quick and easy too. Great mod for all RDX owners. I've had no issues with them since install, they are super bright and color is just about identically to the DRLs and HIDs on the 16's. Feel free to add your pictures before and after install if you'd like.

My dealer is a Acurazine vendor and I get a great discount but not on the Morimoto's. If you think $170 is a little pricey, you can always wait for theretrofitsource to have a sale like 20% off but not gonna get much lower then that. When you compare these with other fog light options, these are by far the best (personal opinion).

Enjoy and happy modding.

Last edited by carbonTSEX; 07-18-2015 at 10:14 PM.
carbonTSEX is offline   Reply With Quote
Old 07-20-2015, 08:46 PM   #21
Registered Member

Join Date: Jul 2015
Posts: 141
Thanked 22 Times in 18 Posts
Thanks for the post
RSX_Takashi is offline   Reply With Quote
The Following User Says Thank You to RSX_Takashi For This Useful Post:
carbonTSEX (07-21-2015)
Old 08-04-2015, 01:06 PM   #22
New Member

Join Date: Aug 2015
Posts: 2
Thanks: 0
Thanked 2 Times in 1 Post
The lights look really nice, but JDM ASTAR sells an LED H11 bulb replacement for about $30 (Amazon) that gives the same light output and color. I have them in my wife's 2016 RDX and my 2011 F350.
jimgraf is offline   Reply With Quote
Old 08-04-2015, 01:19 PM   #23
Registered Member

jasonsymack's Avatar

Join Date: Oct 2012
Location: Vancouver, Canada
Posts: 11
Thanked 0 Times in 0 Posts
thx for this!
jasonsymack is offline   Reply With Quote
Old 08-04-2015, 09:00 PM   #24
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Quote:
Originally Posted by jimgraf View Post
The lights look really nice, but JDM ASTAR sells an LED H11 bulb replacement for about $30 (Amazon) that gives the same light output and color. I have them in my wife's 2016 RDX and my 2011 F350.
I had 5k LED bulbs in my foglights on my TL and sure the color is the same but they don't have a cut off at all. Bulbs only gives scattered light which do nothing but are for looks (mainly). I am very happy with my LEDs and they are so thick I don't have to worry about cracked fog light lenses like the OEM ones in the long run. It's a brand new car and I refuse to cheap out. If you compared the two side by side, you could tell the difference. Just my $.02.

Now for license plate lights and door curtiousy lights those are perfect.
carbonTSEX is offline   Reply With Quote
The Following User Says Thank You to carbonTSEX For This Useful Post:
Comfy (08-04-2015)
Old 08-07-2015, 03:39 PM   #25
Registered Member

giovane's Avatar

Join Date: Nov 2014
Location: Houston
Posts: 187
Thanked 47 Times in 35 Posts
Morimoto installed!
Great upgrade and above all great DIY, thanks carbonTSEX

giovane is offline   Reply With Quote
The Following User Says Thank You to giovane For This Useful Post:
carbonTSEX (08-08-2015)
Old 08-08-2015, 03:55 PM   #26
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Glad you are happy! I would never steer the community the wrong way. Enjoy em!
carbonTSEX is offline   Reply With Quote
The Following 2 Users Say Thank You to carbonTSEX For This Useful Post:
giovane (08-08-2015), MaximX (08-22-2015)
Old 08-22-2015, 02:17 PM   #27
New Member

Join Date: Aug 2015
Location: Seattle, WA
Age: 40
Posts: 3
Thanked 1 Time in 1 Post
Question

Quote:
Originally Posted by carbonTSEX View Post
Glad you are happy! I would never steer the community the wrong way. Enjoy em!
I just picked up the Morimoto XB Type S fogs from Amazon for my 2016 RDX Advance after reading this thread. The box they sent me has a model list with Toyota and Subaru as the only options (Subaru has the check in front of it). Did they send me the wrong item? The lights themselves look exactly the same as the ones posted here but I'm afraid the connector/adapter might be Subaru model specific and not work with the plugs from the OEM Acura cables.

Can anyone who has done this install successfully post up the adapter that came with their fog lights to help me set my mind at ease before I waste my time opening up the bumper to find out I'm screwed?

Thanks all!
MaximX is offline   Reply With Quote
Old 08-22-2015, 02:40 PM   #28
New Member

Join Date: Aug 2015
Location: Seattle, WA
Age: 40
Posts: 3
Thanked 1 Time in 1 Post
Oops, pics would help

Sorry to be such a homer, here are pics of the plugs that came with the kit:








So how screwed am I?
MaximX is offline   Reply With Quote
Old 08-22-2015, 02:53 PM   #29
Registered Member

giovane's Avatar

Join Date: Nov 2014
Location: Houston
Posts: 187
Thanked 47 Times in 35 Posts
Quote:
Originally Posted by MaximX View Post
Sorry to be such a homer, here are pics of the plugs that came with the kit:








So how screwed am I?
You are totally fine, those are the right ones. It's true they advertise as Subaru but as long as they are Type S those are the right ones.
giovane is offline   Reply With Quote
Old 08-22-2015, 03:16 PM   #30
Registered Member

Kaputnik's Avatar

Join Date: Oct 2014
Location: Bay Area
Posts: 553
Thanked 59 Times in 52 Posts
Quote:
Originally Posted by giovane View Post
Type S should be fine.
I looked on oemacuraparts.com and 1st gen RDX shares the same foglight assembly with 2nd gen and 2016 2nd gen.

Looks like I found my next mod.

Hi Giovane, how did you determine that from oemacuraparts.com, regarding 1st gen vs 2nd gen and 2016s? I get different part numbers searching there. I may be missing something - I am looking at the fog lights for the 2016 as an accessory, whereas they were standard equipment in 2008. Thanks.
Kaputnik is offline   Reply With Quote
Old 08-22-2015, 04:23 PM   #31
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Hey sorry I just read this. The connector does look correct. Was it already connected or did you have to plug the wire prongs thru the females plug? Mine was the same, had to put it to put it together. Just make sure the wires are in the correct way or you'll have a hard time getting them out clean Aniyah the reuse them. It literally takes no time to open the bumper like I showed. Let us know how it goes.
carbonTSEX is offline   Reply With Quote
Old 08-22-2015, 05:30 PM   #32
Registered Member

giovane's Avatar

Join Date: Nov 2014
Location: Houston
Posts: 187
Thanked 47 Times in 35 Posts
Quote:
Originally Posted by Kaputnik View Post
Hi Giovane, how did you determine that from oemacuraparts.com, regarding 1st gen vs 2nd gen and 2016s? I get different part numbers searching there. I may be missing something - I am looking at the fog lights for the 2016 as an accessory, whereas they were standard equipment in 2008. Thanks.
The accessory you looked at is a bundle of light assembly, harness and dashboard lever, but the foglight assembly alone is the same.





giovane is offline   Reply With Quote
The Following User Says Thank You to giovane For This Useful Post:
Kaputnik (08-22-2015)
Old 08-23-2015, 04:35 PM   #33
New Member

Join Date: Aug 2015
Location: Seattle, WA
Age: 40
Posts: 3
Thanked 1 Time in 1 Post
Quote:
Originally Posted by carbonTSEX View Post
Hey sorry I just read this. The connector does look correct. Was it already connected or did you have to plug the wire prongs thru the females plug? Mine was the same, had to put it to put it together. Just make sure the wires are in the correct way or you'll have a hard time getting them out clean Aniyah the reuse them. It literally takes no time to open the bumper like I showed. Let us know how it goes.
Final result: Success!

Thanks to all for the great DIY instructions and the feedback!

Question, with the extra length of cable added with the morimotos, how did you secure it to avoid contact with the other surfaces?
MaximX is offline   Reply With Quote
The Following User Says Thank You to MaximX For This Useful Post:
carbonTSEX (08-24-2015)
Old 08-23-2015, 04:51 PM   #34
Registered Member

giovane's Avatar

Join Date: Nov 2014
Location: Houston
Posts: 187
Thanked 47 Times in 35 Posts
Quote:
Originally Posted by MaximX View Post
Final result: Success!

Thanks to all for the great DIY instructions and the feedback!

Question, with the extra length of cable added with the morimotos, how did you secure it to avoid contact with the other surfaces?

I used a couple of zip ties.
giovane is offline   Reply With Quote
Old 08-24-2015, 11:16 AM   #35
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
Glad you got them installed.
carbonTSEX is offline   Reply With Quote
Old 08-25-2015, 10:49 AM   #36
Registered Member

Join Date: Jul 2015
Posts: 141
Thanked 22 Times in 18 Posts
Just got mine installed yesterday into a Canadian model RDX.

Note: Passenger side fog light: The top right fog light mounting screw is hidden behind the windshield washer fluid storage tank. You will need a small angle screw driver to get to the self tapping screw.

You can order the fogs through a Canadian supplier.
RSX_Takashi is offline   Reply With Quote
The Following User Says Thank You to RSX_Takashi For This Useful Post:
carbonTSEX (08-25-2015)
Old 08-25-2015, 11:43 AM   #37
Registered Member

giovane's Avatar

Join Date: Nov 2014
Location: Houston
Posts: 187
Thanked 47 Times in 35 Posts
OEM fog lights are quite expansive because they come with bumper trims, harness, dashboard lever and of course bulbs.
I wonder how much they would cost without the whole bundle, just the bulbs.

Here's a thread on the ILX subforum where a user shows the OEM LEDs.
https://acurazine.com/forums/photogr...-light-930621/

I tried to check online for the Koito brand and serials but I had no luck.
giovane is offline   Reply With Quote
Old 08-25-2015, 01:17 PM   #38
Registered Member

Join Date: Jul 2015
Posts: 141
Thanked 22 Times in 18 Posts
Quote:
Originally Posted by giovane View Post
OEM fog lights are quite expansive because they come with bumper trims, harness, dashboard lever and of course bulbs.
I wonder how much they would cost without the whole bundle, just the bulbs.

Here's a thread on the ILX subforum where a user shows the OEM LEDs.
https://acurazine.com/forums/photogr...-light-930621/

I tried to check online for the Koito brand and serials but I had no luck.
Based on the Acura RDX installation instructions, the part number for the LED fog lights kit is: 08V31-TX6-2A0

I seen the kit sold online and the price for the OEM LED fog lights is ~ 450 USD.
RSX_Takashi is offline   Reply With Quote
Old 08-25-2015, 11:33 PM   #39
Registered Member

carbonTSEX's Avatar

Join Date: Jan 2010
Location: Seattle, WA
Posts: 1,908
Thanked 335 Times in 284 Posts
RSX_Takishi that is good info for any Canadian's that are interested in doing the foglight install.
carbonTSEX is offline   Reply With Quote
Old 08-26-2015, 12:12 AM   #40
Registered Member

Join Date: Jul 2015
Posts: 141
Thanked 22 Times in 18 Posts
Quote:
Originally Posted by carbonTSEX View Post
RSX_Takishi that is good info for any Canadian's that are interested in doing the foglight install.
We love fog lights too. It's getting people to turn them off during daytime that's the headache. Trust me. I have seen people drive around with low beams and fog lights in the afternoon.

I ordered the Morimoto fogs via a Canadian supplier and installed yellow Lamin-X on them. They look super slick.
RSX_Takashi is offline   Reply With Quote
