DIY Timing Belt

Did my timing belt after 120k. I Got the Timing belt, Ps belt, AC belt, Water Pump, Tensioner, Idler, and the adjuster pulley. This is my first time doing a timing belt on any car and it took a long time (5 hours). I could of done it faster but I was taking pictures and didnt have the battery tie down as that is a very important tool. I think I can do one now in about 2 hours. Here is a DIY. This isnt the best write up due to the pics and I did this at work after working on cars for the past 9 hours(was really beat). Overall, this was a easy job. From a scale of 1 to 10, I rate this about 3. The hardest part was removing all the bolts for the timing cover due to the limited amount of room.

Click the image to open in full size.

List of tools you will need

-Crank Holder
-Impact Gun
-Serpentine belt tool
-Battery Tie down tool
-Lots of different sockets, swivels,extensions,wrenches, etc
-Jack+Block of wood

I AM NOT RESPONSIBLE FOR ANY DAMAGE DONE TO YOUR ENGINE. Proceed at your own will.

Removal

1.Turn the crank to make sure your Timing marks line up. Front Cam, Rear Cam, And Crank Mark. ( No pics for the rear cam-You need a mirror to see the timing mark.)

Click the image to open in full size.
Click the image to open in full size.
Front cam timing mark
Click the image to open in full size.
Crank Timing mark-Look for a White dot & Arrow on the timing cover. They should line up


2.Remove Right front Wheel and Under panel

3.Move Auto tensioner and remove Alternator/AC belt
Click the image to open in full size.
Use a serpentine belt tool. If you dont have one use a 14mm wrench but be careful since there is a lot of tension on that

4.Loosen the PS pump nuts. One is hidden behind the pulley. There is a total of 3 nuts. Remove belt. Note-I would recommend un-doing the hose clamp and move the pump out of your way IF you have bought PS fluid.
Click the image to open in full size.
Click the image to open in full size.


5.Support the motor with a floor jack and block of wood under the oil pan.
Click the image to open in full size.


6.Remove the engine side mount.
Click the image to open in full size.
Click the image to open in full size.

7. Remove the oil dip stick tube by undoing the 10mm bolt. (new o-ring for dipstick tube is recommended)
Click the image to open in full size.


8.Remove the crank bolt (19mm socket) with impact tool. Before you remove the crank, Re-check ALL your Timing Marks to make sure they are align.
Click the image to open in full size.
Kinda Surprise that the crappy husky gun removed the bolt.
Click the image to open in full size.

9.Remove all the Timing cover bolt, starting with the front, rear, and lower. This is the most frustrating part due to lack of room.
Click the image to open in full size.
Click the image to open in full size.

9a. I do this "just in case" If I screw up. Mark your Cam gears with white paint.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.


10. I dont have a Pic for this Due to the lack of room for me to fit my Camera (DSLR). You need to remove one of your battery tie down bar. Use the tie down bar and screw it in a bracket to push the Timing Belt Adjuster pulley in to release the tension on the timing belt. Sorry, that is the best i can explain it. If you dont have the tie down like me, Your gonna have a hell of a time to relieve the tension on that.

11.Remove the Engine Side Mount Bracket.
Click the image to open in full size.

12.Loosen the Idler pulley and remove the belt.
Click the image to open in full size.
Click the image to open in full size.

13. Remove and replace water pump.
Click the image to open in full size.

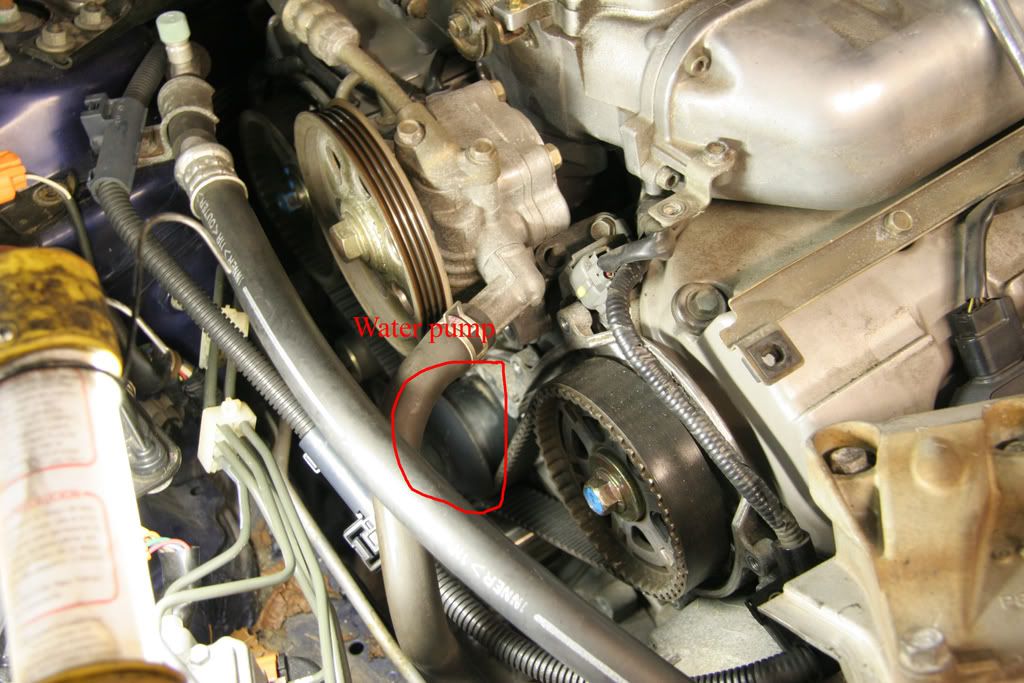

(Forgot to take a pic of the water pump so i have to re-use a pic, Notice the belt if not off of the pic when it is supposed to be)


14. Remove battery tie down and remove adjuster.


Everthing removed
Click the image to open in full size.

Tensioner Looks good
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

The belt could of lasted another 20k
Click the image to open in full size.

Idler pulley looks good
Click the image to open in full size.

Adjuster pulley looks good
Click the image to open in full size.


Install..........
I dont really have pics for install since its really just a reverse of everything.

1.Install timing tensioner, but do not remove the pin. Install the battery tie down tool.(If you re-use the old tension, You need to put it in a vice and compress the tensioner.)

2. Install the timing belt COUNTER-Clockwise starting with crank gear working your way up the to front cam gear around idler pulley and into rear cam gear. AND MAKE SURE ALL THE BELT SLACKS ARE AT THE TENSIONER!!! There should be no slacks or play between the cam gears or crank and cam gear. Note-If your belt dont line up with the cam gears, Dont worry, Move the cam gear very slightly(were talking about a .1 mm NOT A TOOTH).

3. I can't stress enough on how important it is to make sure there are no belt slacks between the cam gears and crank gears. Double Check your Belt BEFORE you remove the pin to the tensioner. Pull the pin when your ready Remove battery tie down tool.

4. Check your timing mark to make sure they are correct. Install the crank and bolt(no need to tighten the crank bolt). Turn the Engine over a few times by putting a 19 mm socket+ratchet.

5. If they are, your good. Install everything in reverse order,
If not, start over from step 10 of removal process.

Remember to do your cooling system flush.

Good luck

Feel free to chime in if I forgot something
